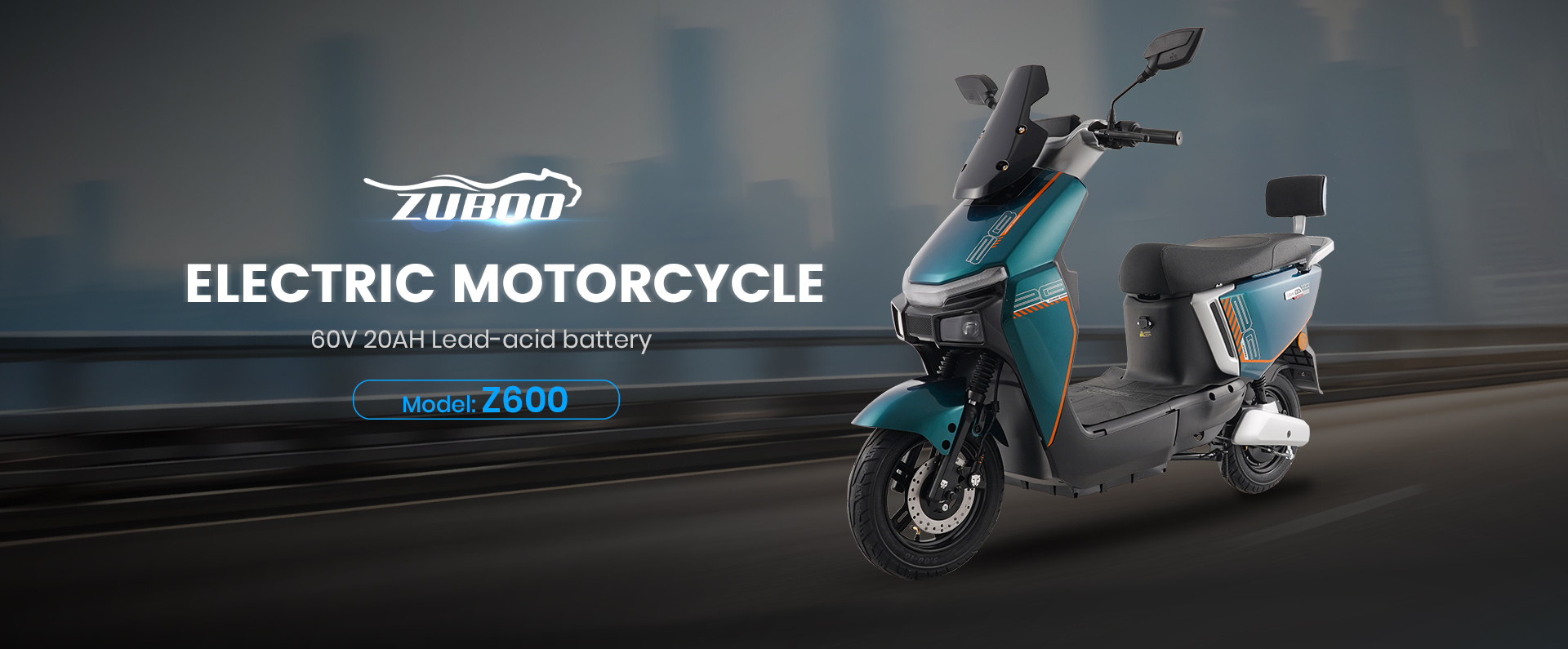

• Model No.:

  Z600

• Overall Dimensions:

  1710×740×1095mm

• Wheelbase:

  1240mm

• Maximum Speed:

  1240mm

• Range:

  ≥50km

• Braking Length:

  6.5m

• Climbing Capacity:

  8°

• Minimum Ground Clearance:

  200mm

• Overall Weight:

  55kg

• Steering Angle:

  left 45°,right 40°

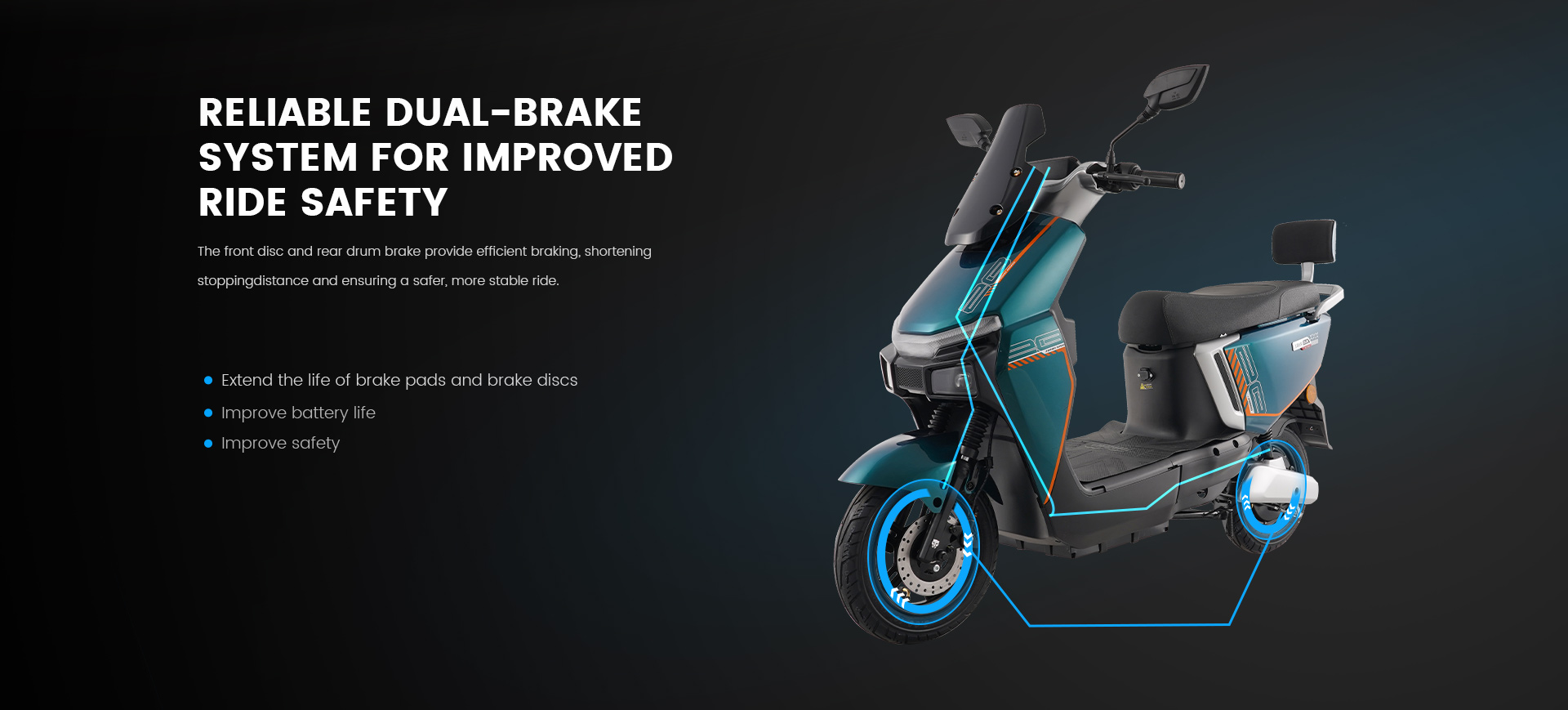

• Braking Method:

  Hand

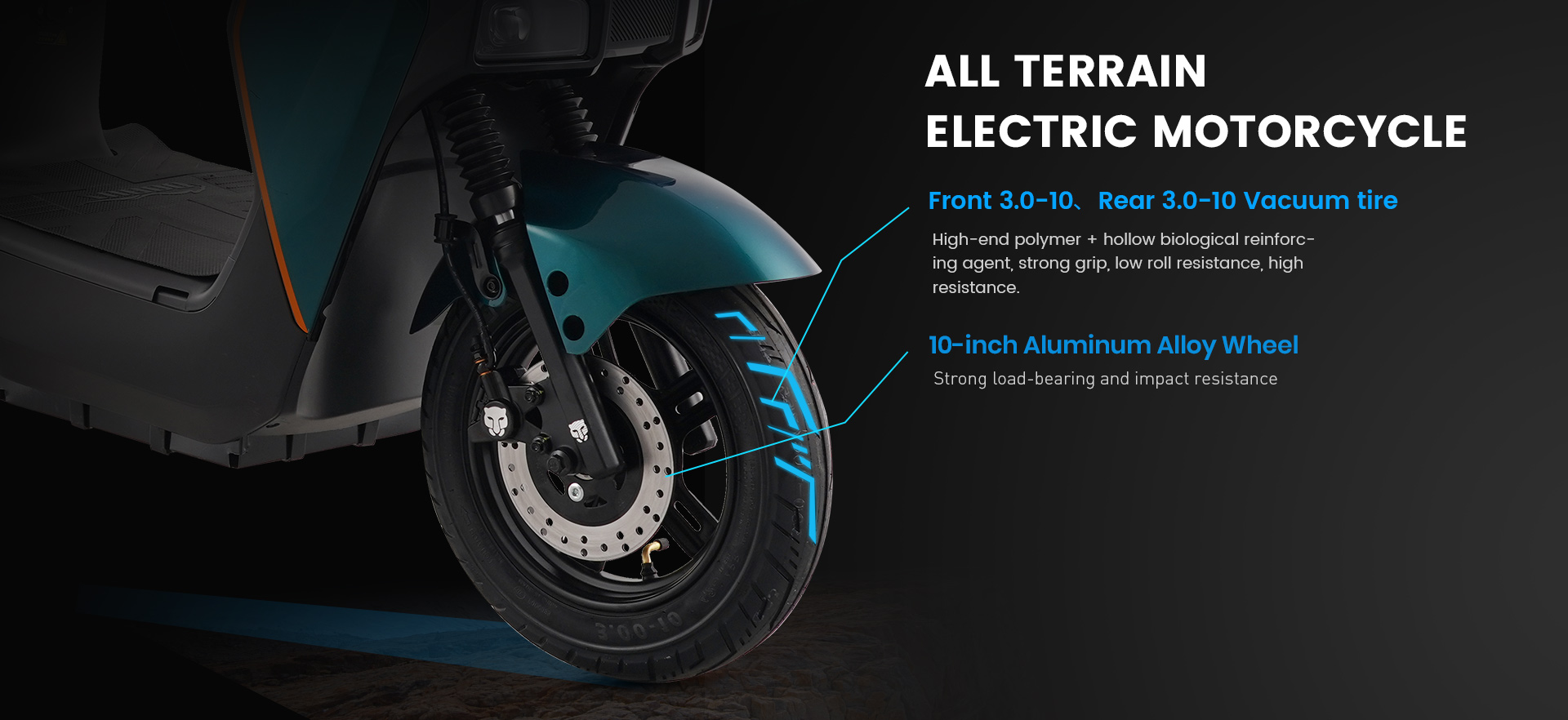

• Tire Specification:

  Front 3.0-10、Rear 3.0-10 Vacuum tire

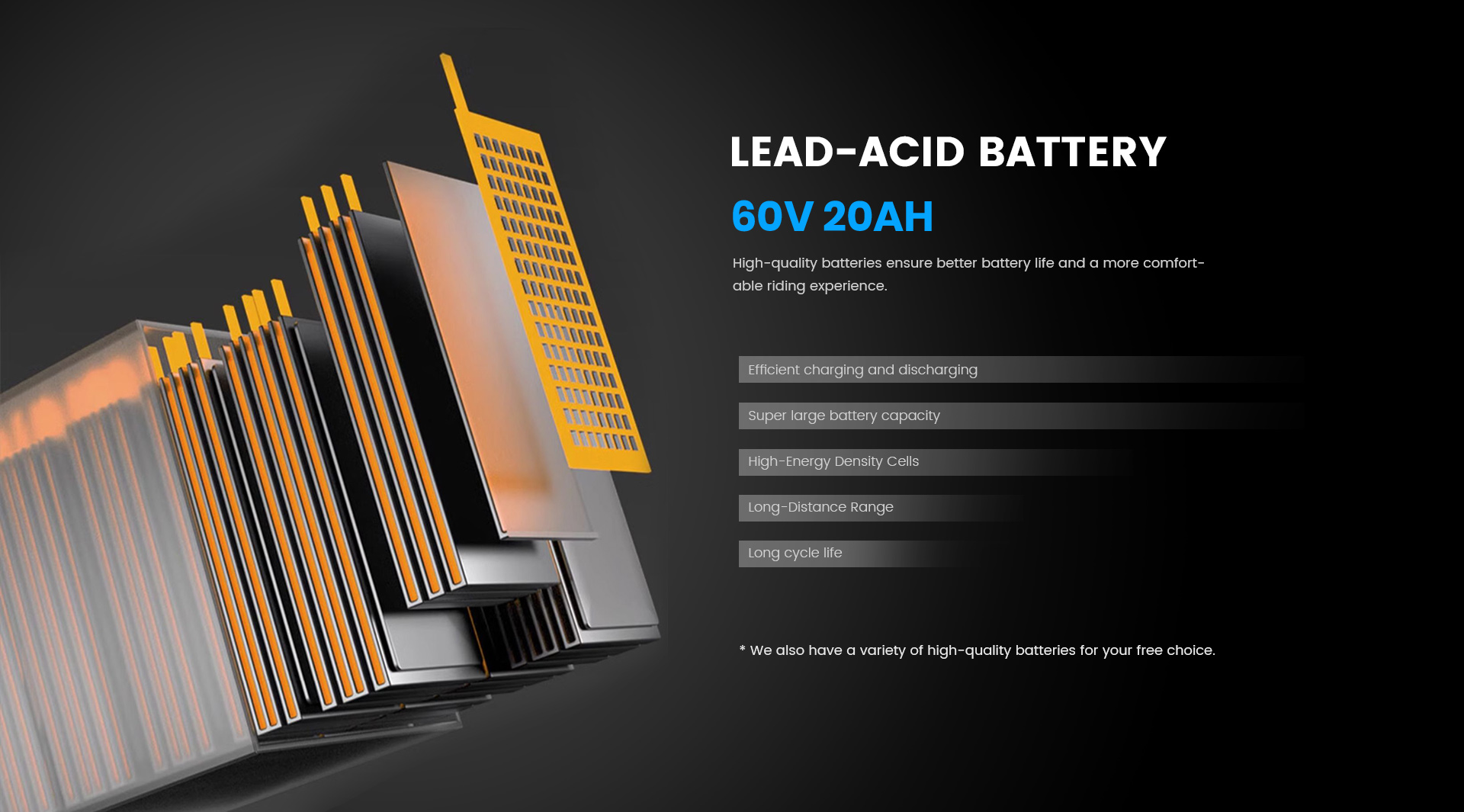

• Battery Type:

  Lead Acid

• Rated Capacity:

  20Ah

• Nominal Voltage:

  60V

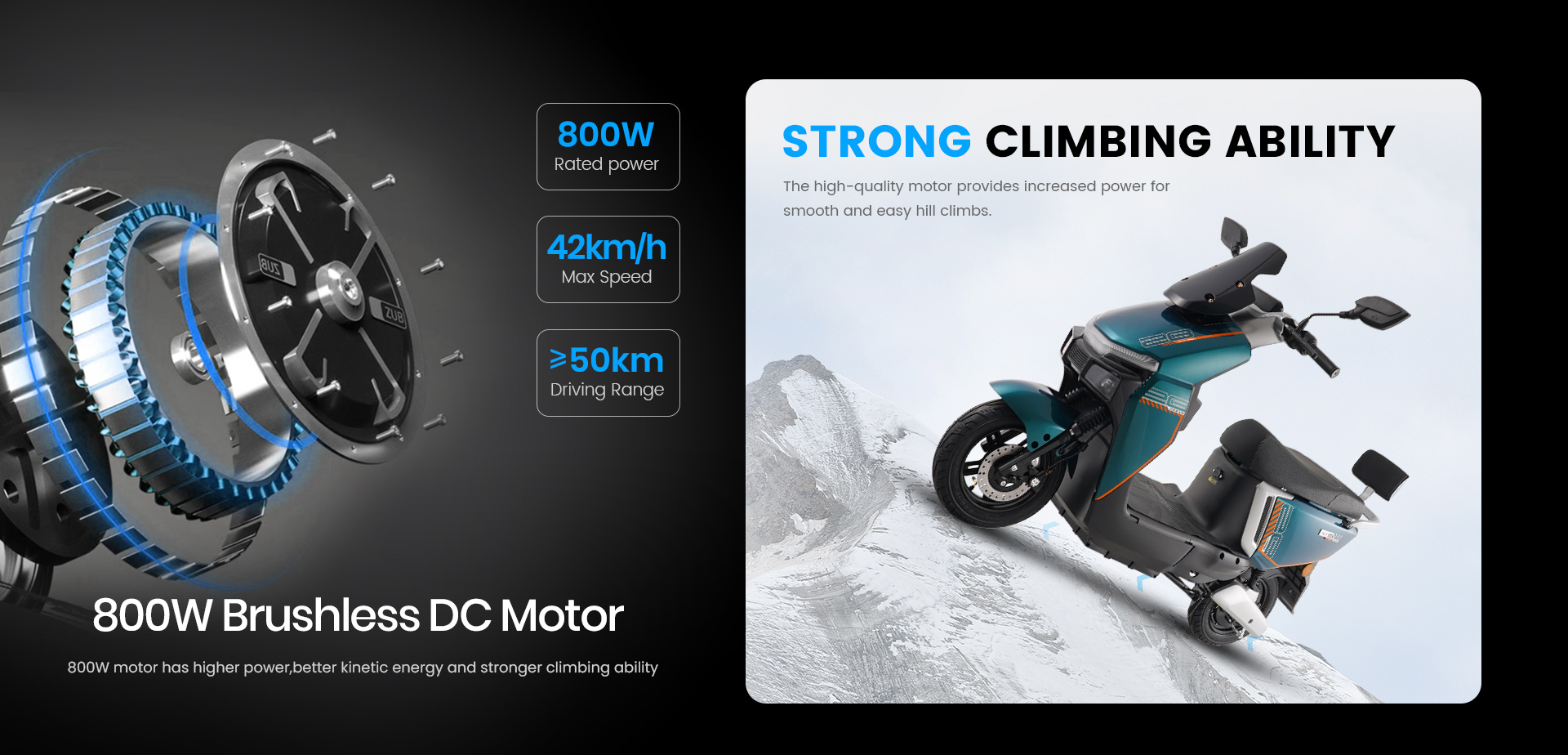

• Motor Type:

  10 inch Brushless DC

• Motor Rated Power:

  800W

• Rotation Speed:

  550±10r/min

• Motor Rated Voltage:

  60V

• Output Max Torque:

  85N.M

• Controller Tubes:

  12 tubes

• Charging Time:

  5-6hrs

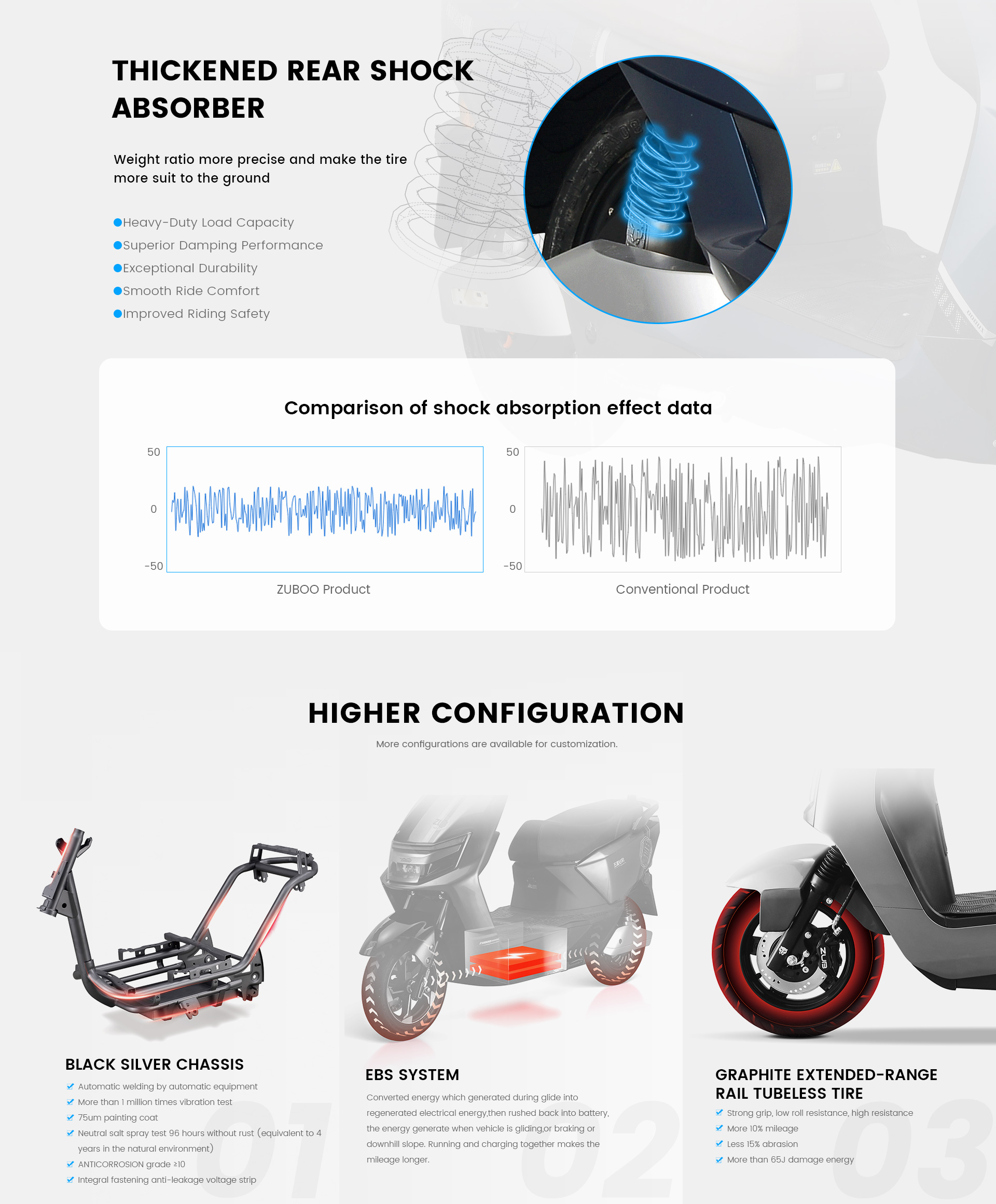

• Suspension System:

  Front Disc and rear drum brake
