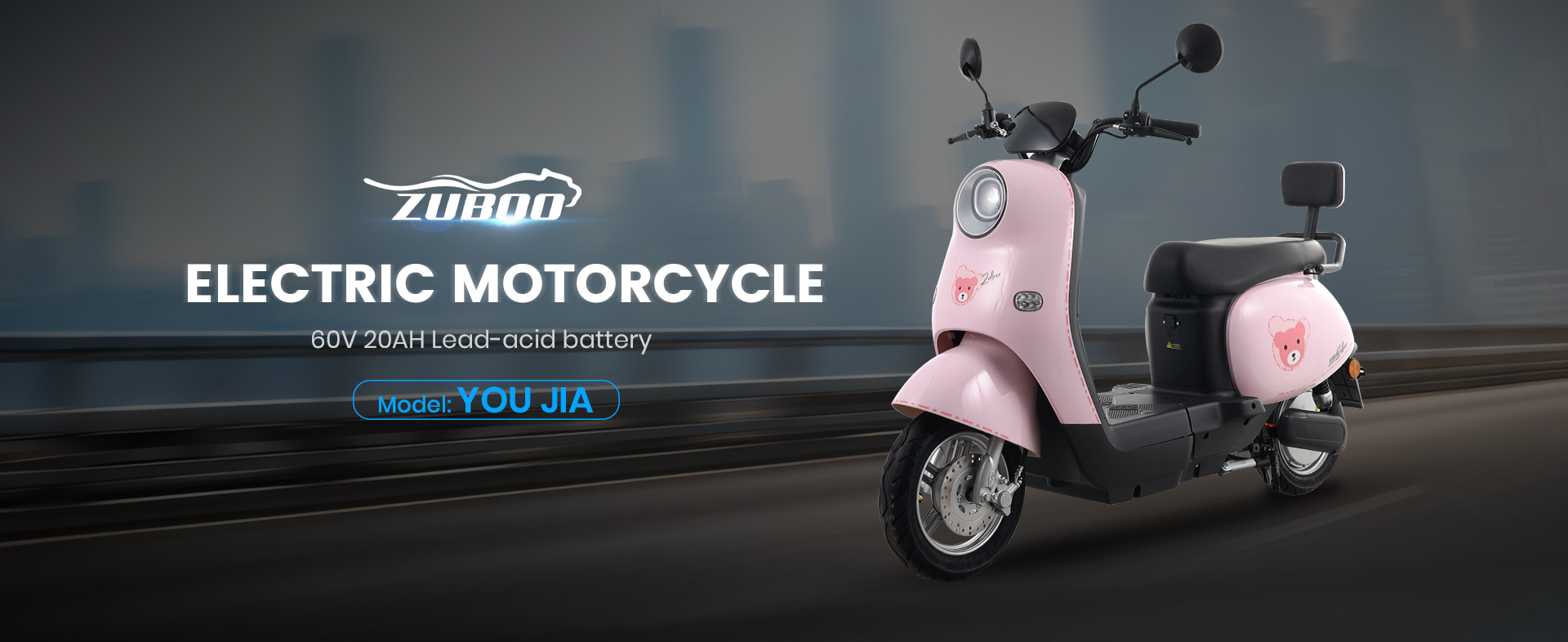

• Model No.:

  YouJia

• Overall Dimensions:

  1720×710×1070mm

• Wheelbase:

  1245mm

• Maximum Speed:

  25km/h

• Range:

  ≥50km

• Braking Length:

  8m

• Climbing Capacity:

  8°

• Minimum Ground Clearance:

  140mm

• Overall Weight:

  55kg

• Steering Angle:

  left 43°,right 44°

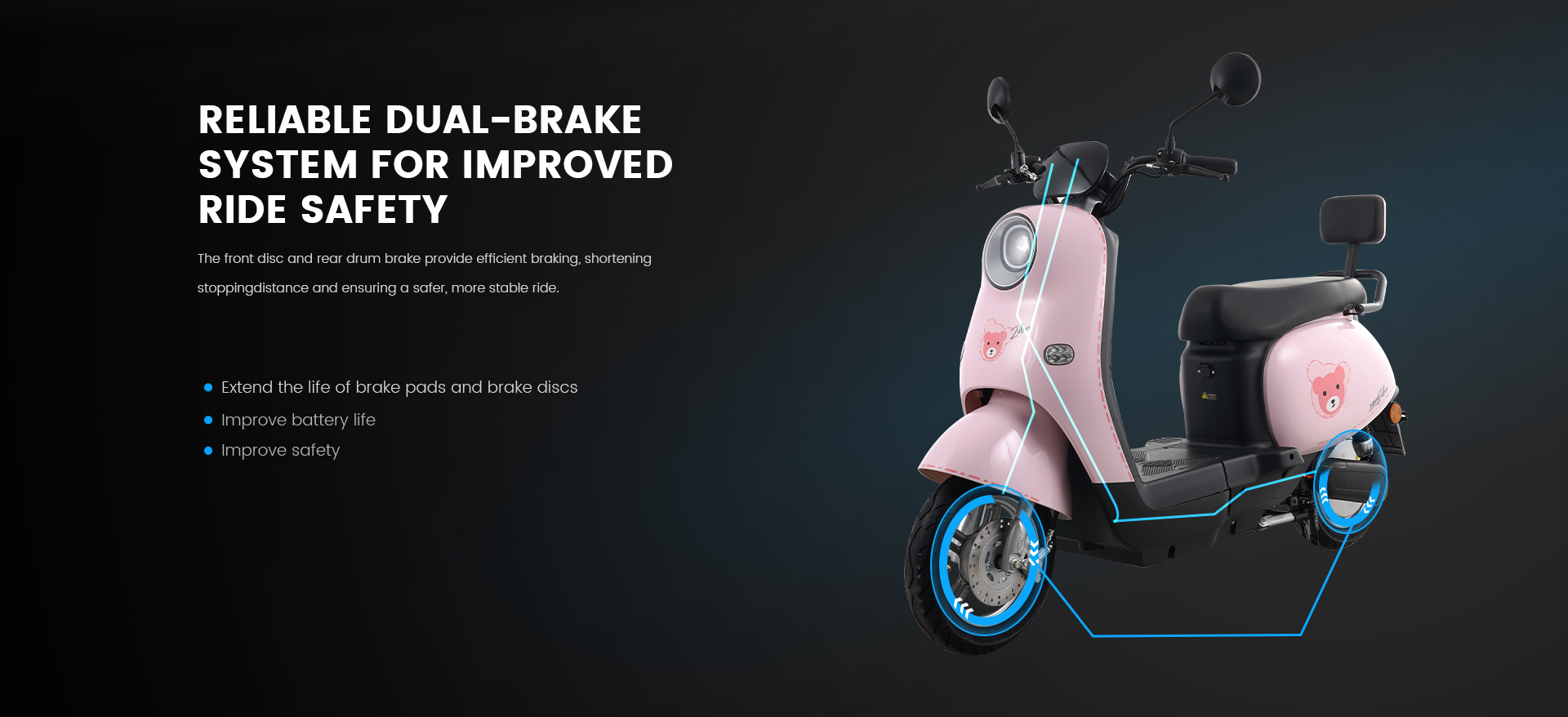

• Braking Method:

  Hand

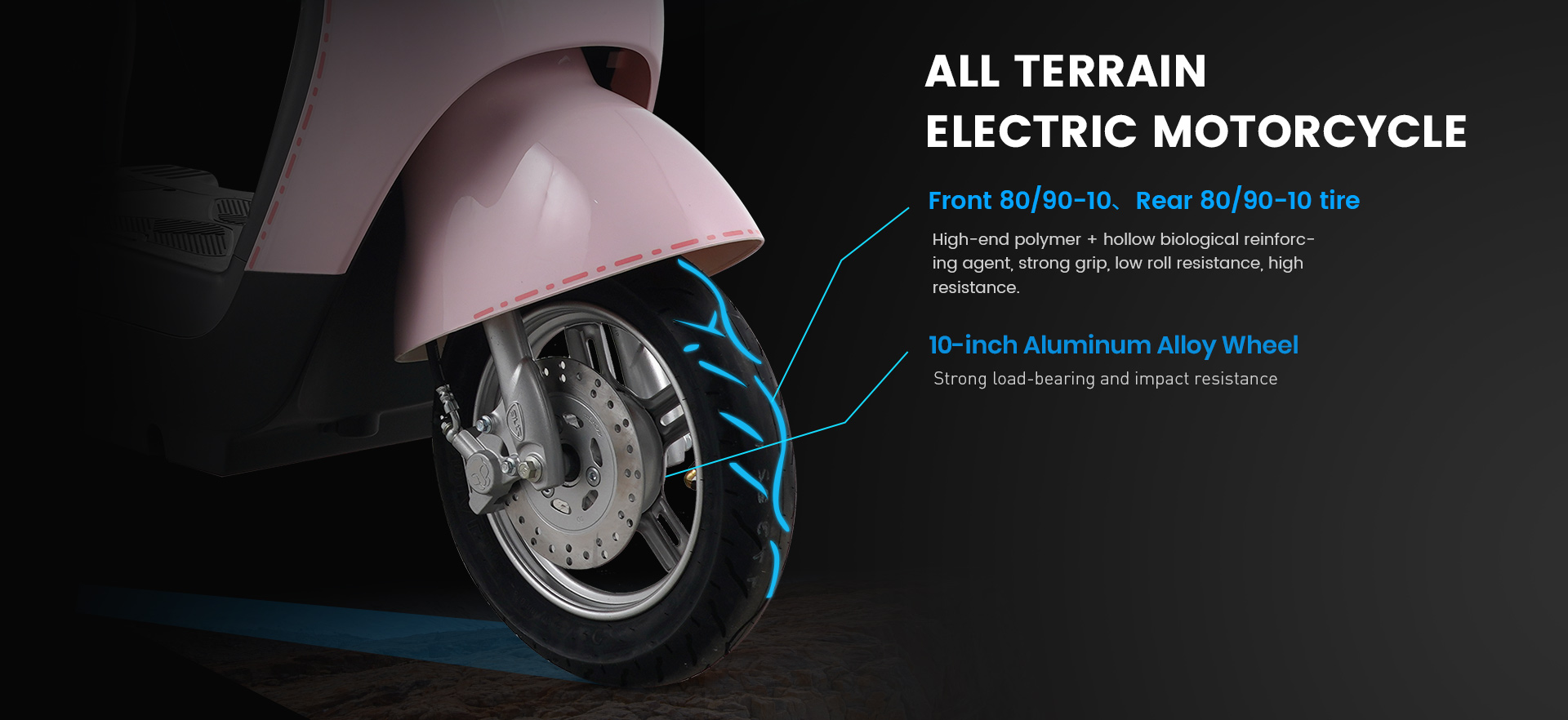

• Tire Specification:

  Front 80/90-10、Rear 80/90-10 tire

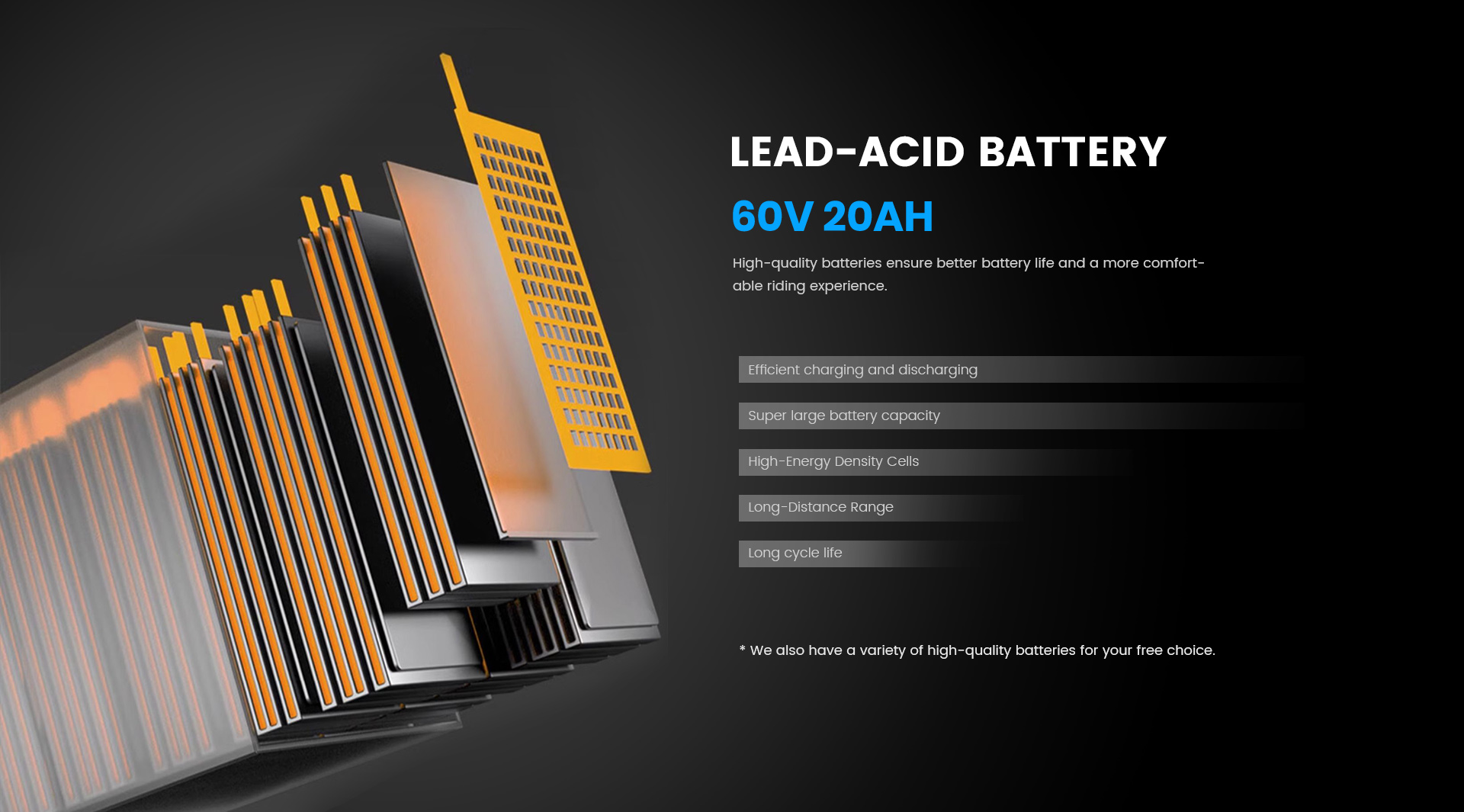

• Battery Type:

  Lead Acid

• Rated Capacity:

  20Ah

• Nominal Voltage:

  60V

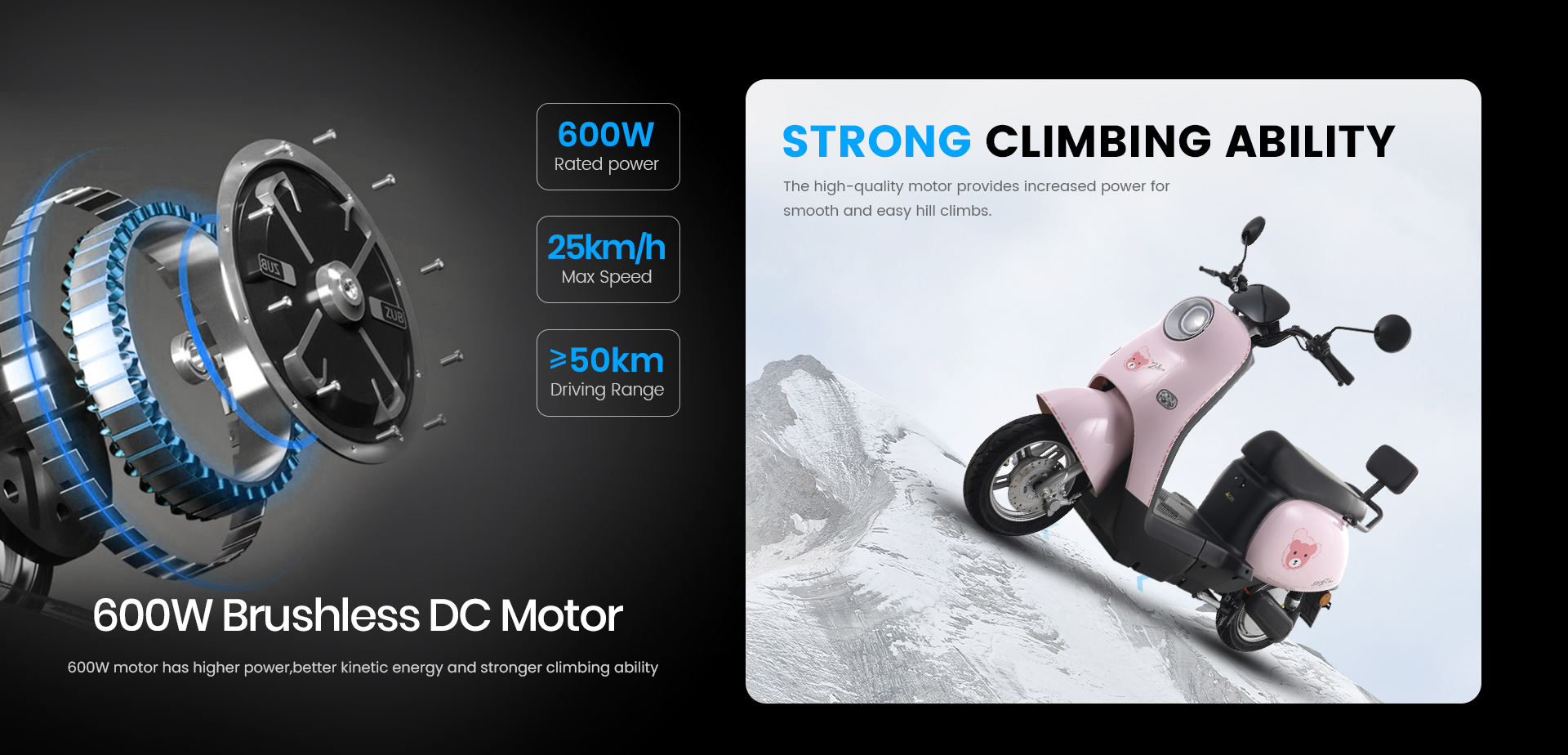

• Motor Type:

  10 inch Brushless DC

• Motor Rated Power:

  600W

• Rotation Speed:

  550±10r/min

• Motor Rated Voltage:

  60V

• Output Max Torque:

  95N.M

• Controller Tubes:

  12 tubes

• Charging Time:

  5-6hrs

• Suspension System:

  Front Disc and rear drum brake
