• Model No.:

  YH

• Overall Dimensions:

  1780*700*1080mm

• Wheelbase:

  1300mm

• Maximum Speed:

  52km/h

• Range:

  80km

• Braking Length:

  8-12m

• Climbing Capacity:

  8-15°

• Minimum Ground Clearance:

  125mm

• Overall Weight:

  92kg

• Steering Angle:

  left 44°,right 43°

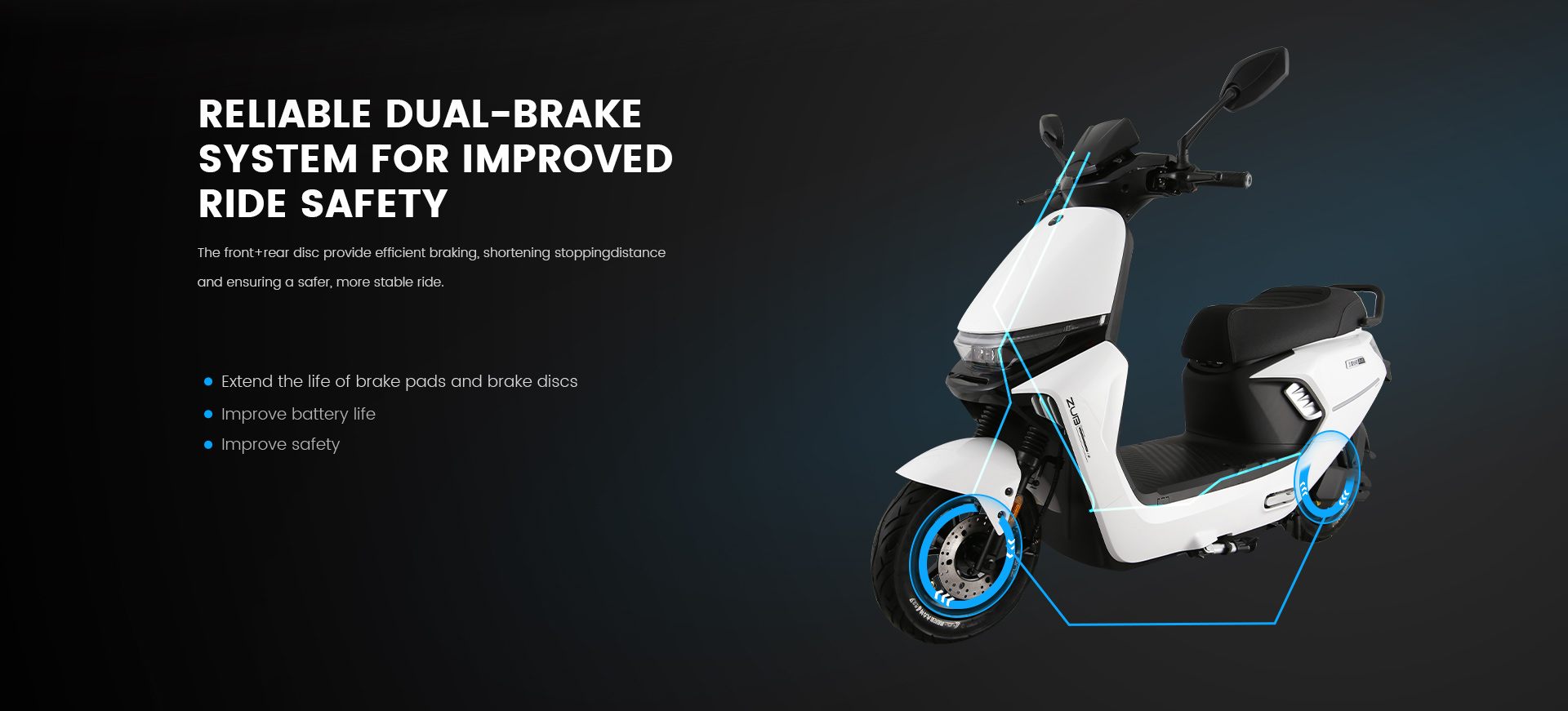

• Braking Method:

  Hand

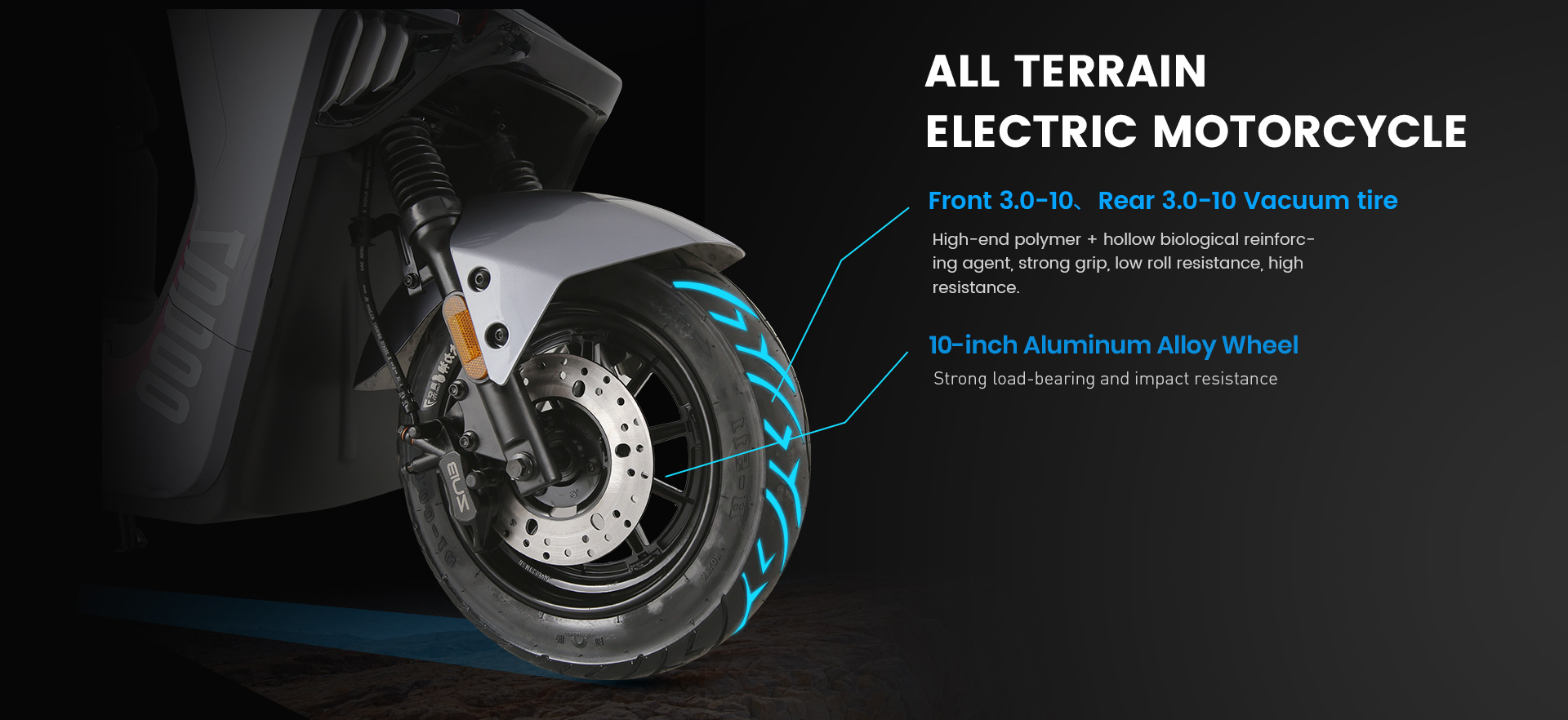

• Tire Specification:

  Front 3.0-10、Rear 3.0-10 Vacuum tire

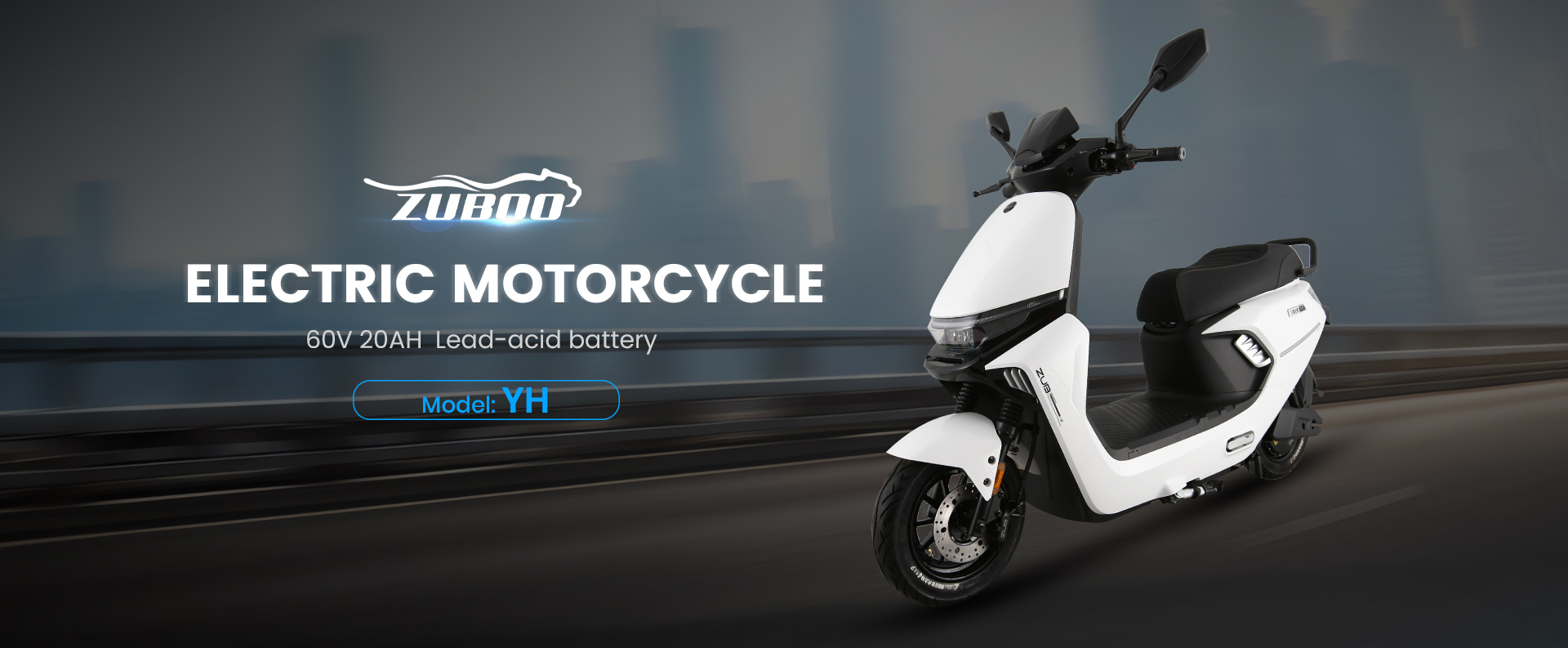

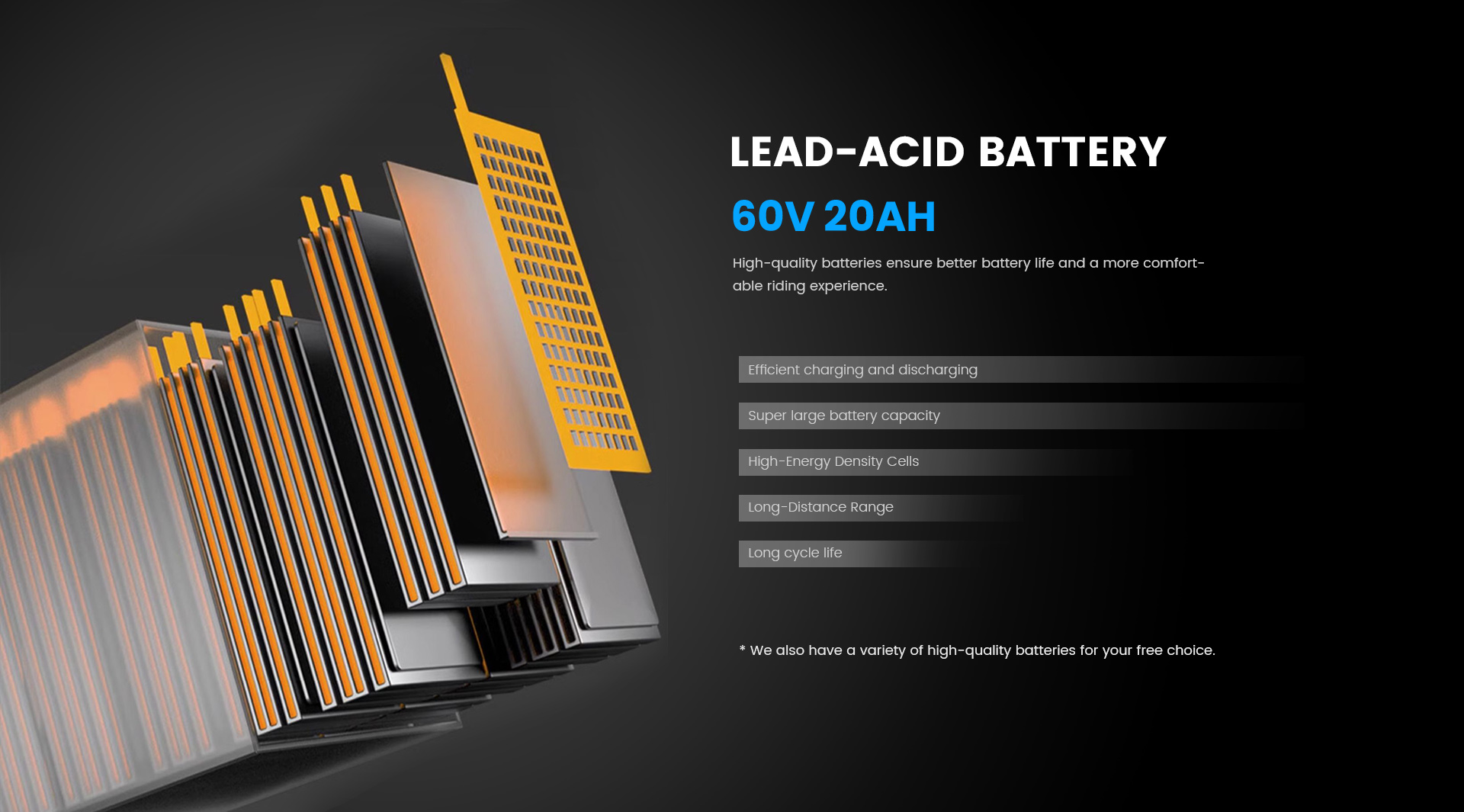

• Battery Type:

  Lead Acid

• Rated Capacity:

  20Ah

• Nominal Voltage:

  60V

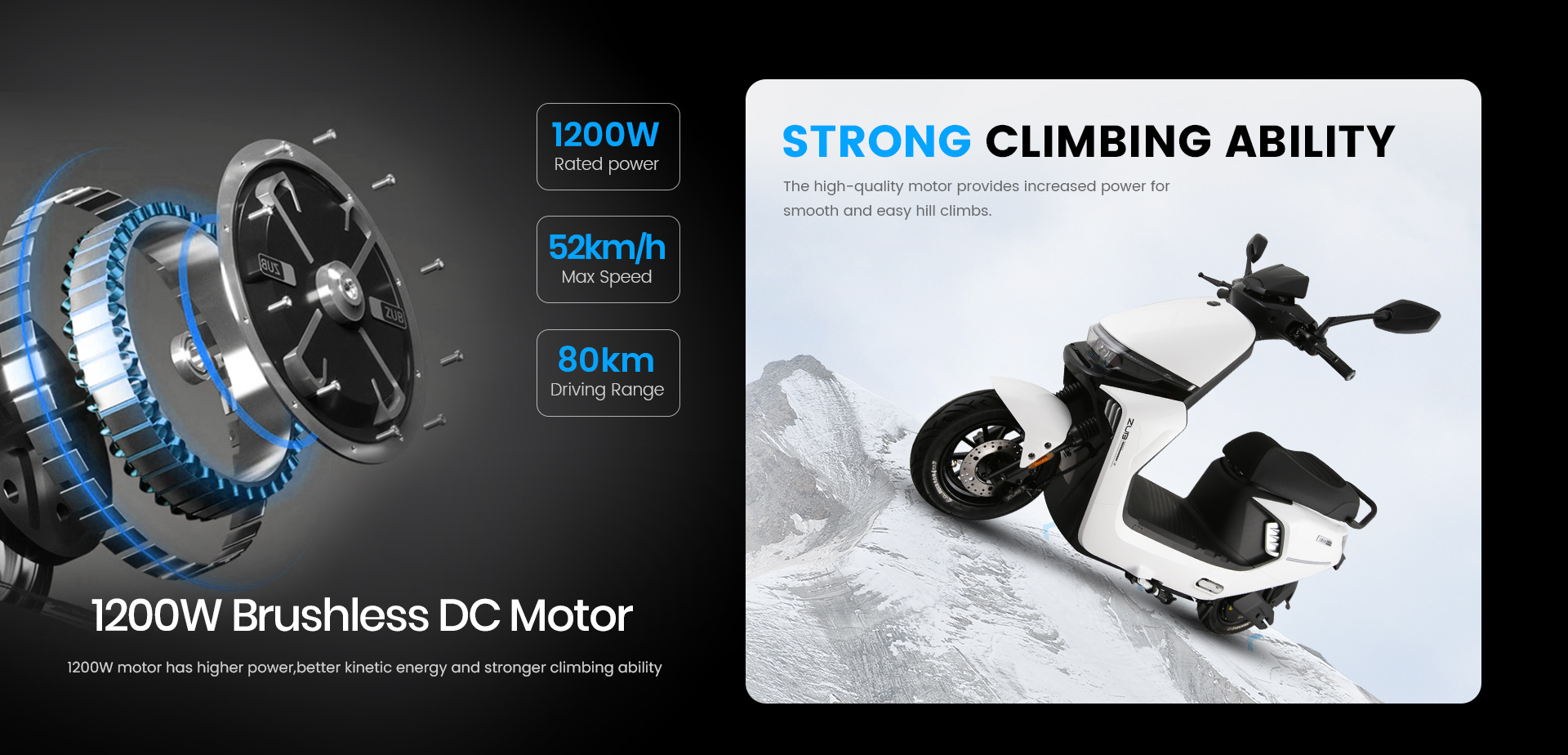

• Motor Type:

  10 inch Brushless DC

• Motor Rated Power:

  1200W

• Rotation Speed:

  600r/min

• Motor Rated Voltage:

  60V

• Output Max Torque:

  85N.M

• Controller Tubes:

  12 tubes

• Charging Time:

  5-6hrs

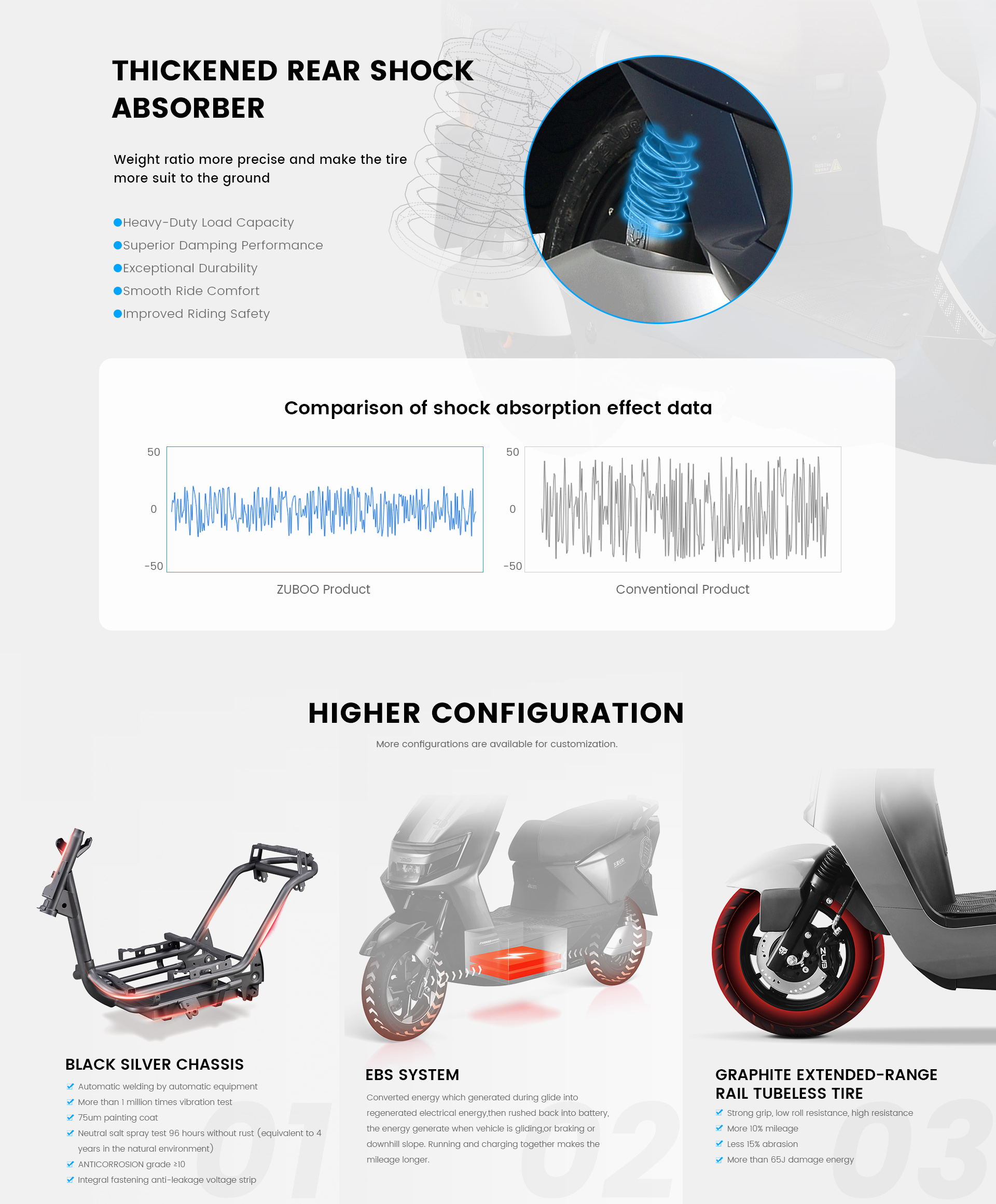

• Suspension System:

  Front+Rear Disc
