• Model No.:

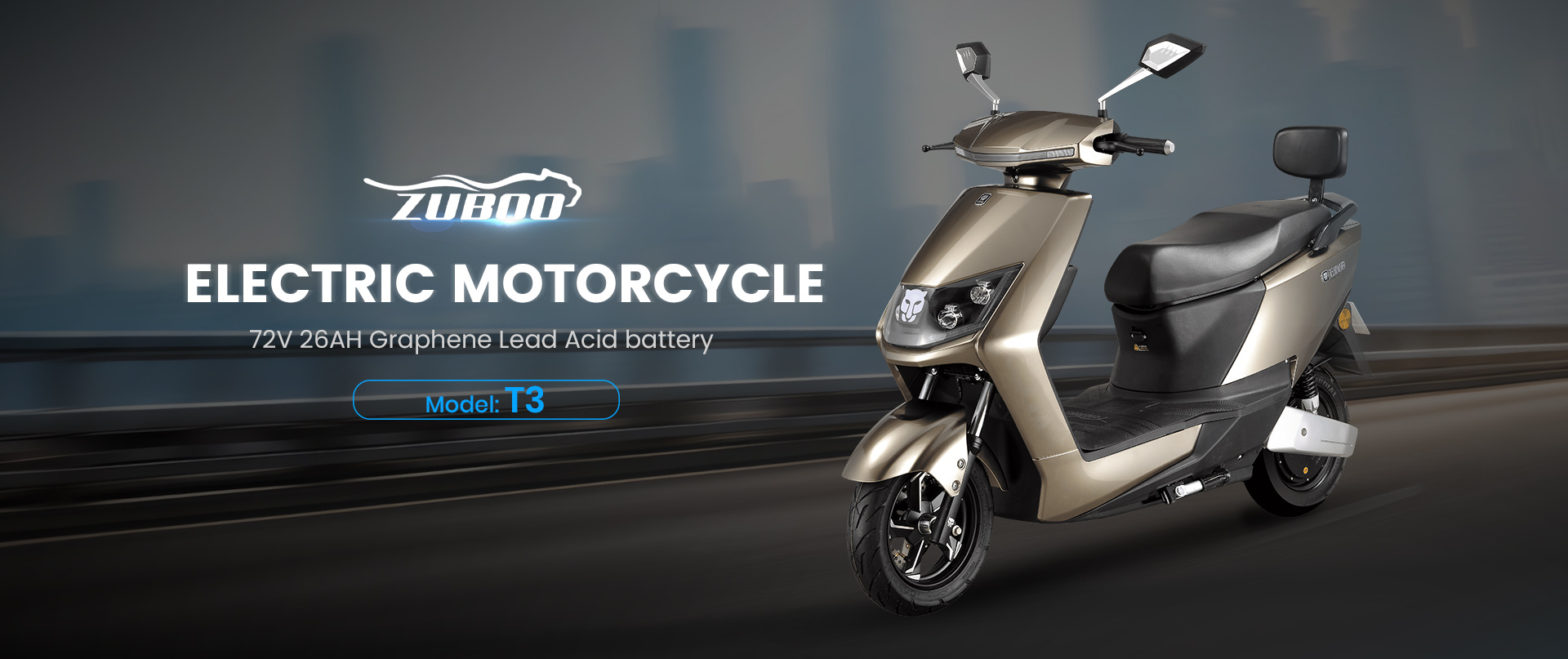

  T3

• Overall Dimensions:

  1775×705×1095mm

• Packaging Size:

  1700*570*815mm

• Wheelbase:

  1305mm

• Maximum Speed:

  50-55km/h

• Range:

  60km

• Braking Length:

  8-12m

• Climbing Capacity:

  8°

• Minimum Ground Clearance:

  155mm

• Overall Weight:

  105kg

• Steering Angle:

  left 44°,right 43°

• Braking Method:

  Hand

• Tire Specification:

  Front 3.0-10、Rear 3.0-10 tire

• Battery Type:

  Graphene Lead Acid

• Rated Capacity:

  26Ah

• Nominal Voltage:

  72V

• Motor Type:

  10 inch Brushless DC

• Motor Rated Power:

  1500W

• Rotation Speed:

  730±10r/min

• Motor Rated Voltage:

  72V

• Output Max Torque:

  110N.M

• Controller Tubes:

  12 tubes

• Charging Time:

  5-6hrs

• Suspension System:

  Front Disc and rear drum brake
