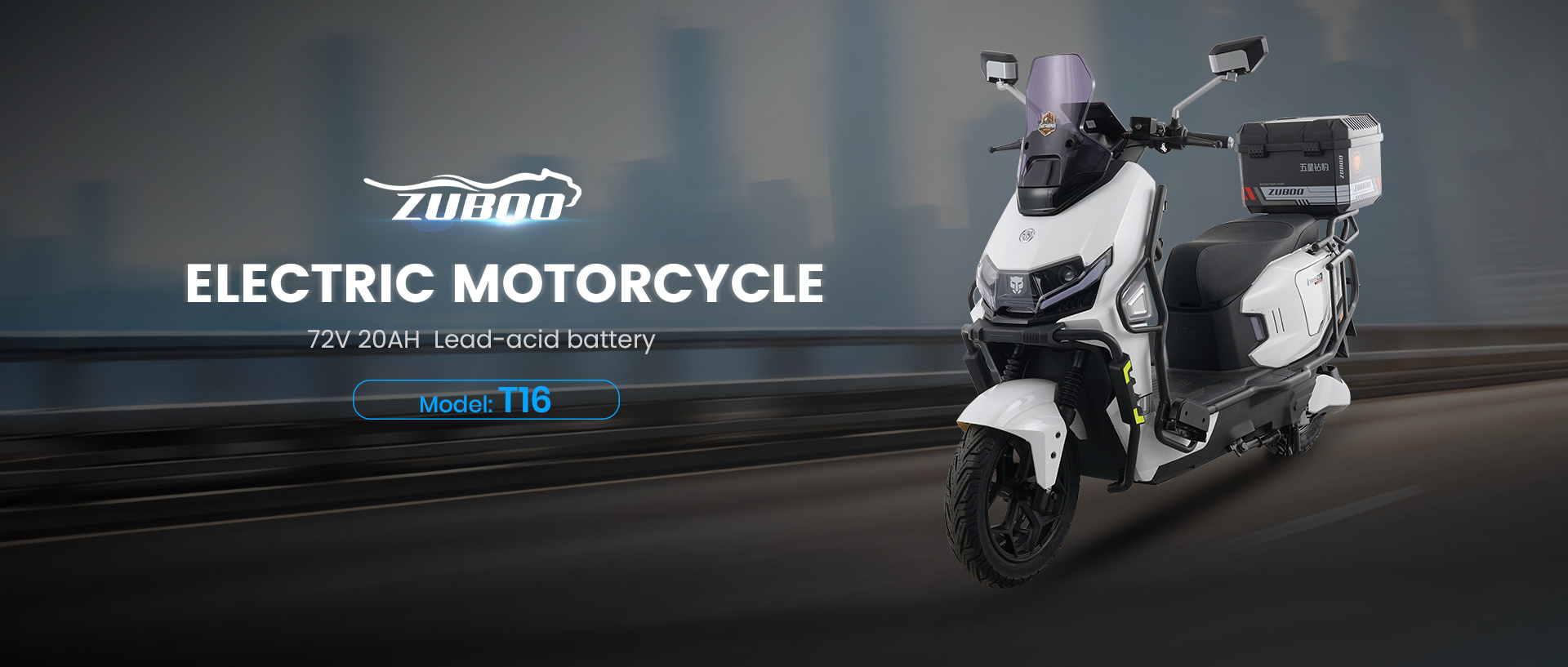

• Model No.:

  T16

• Overall Dimensions:

  1915*725*1240mm

• Wheelbase:

  1350mm

• Maximum Speed:

  45km/h

• Range:

  78km

• Braking Length:

  6.5m

• Climbing Capacity:

  8-15°

• Minimum Ground Clearance:

  145mm

• Overall Weight:

  129kg

• Steering Angle:

  left 43°,right 44°

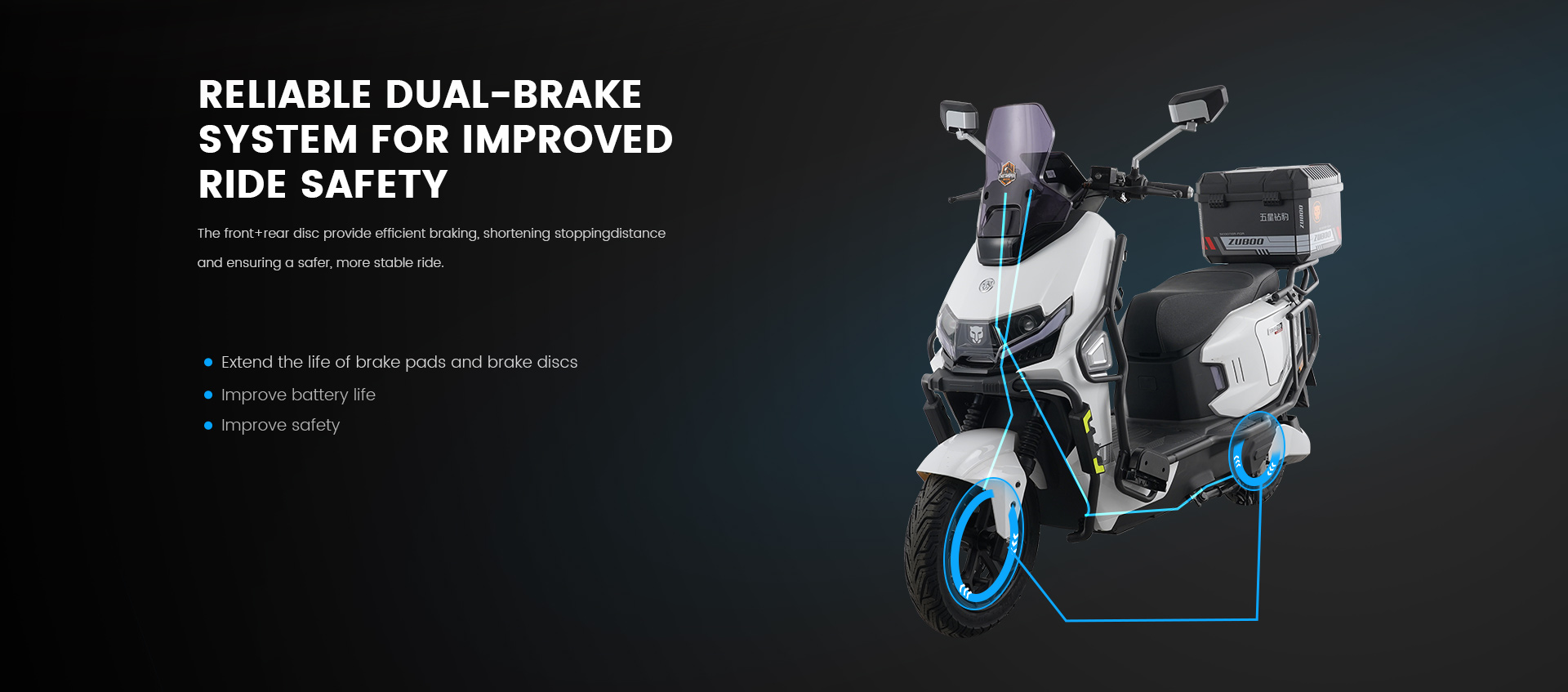

• Braking Method:

  Hand

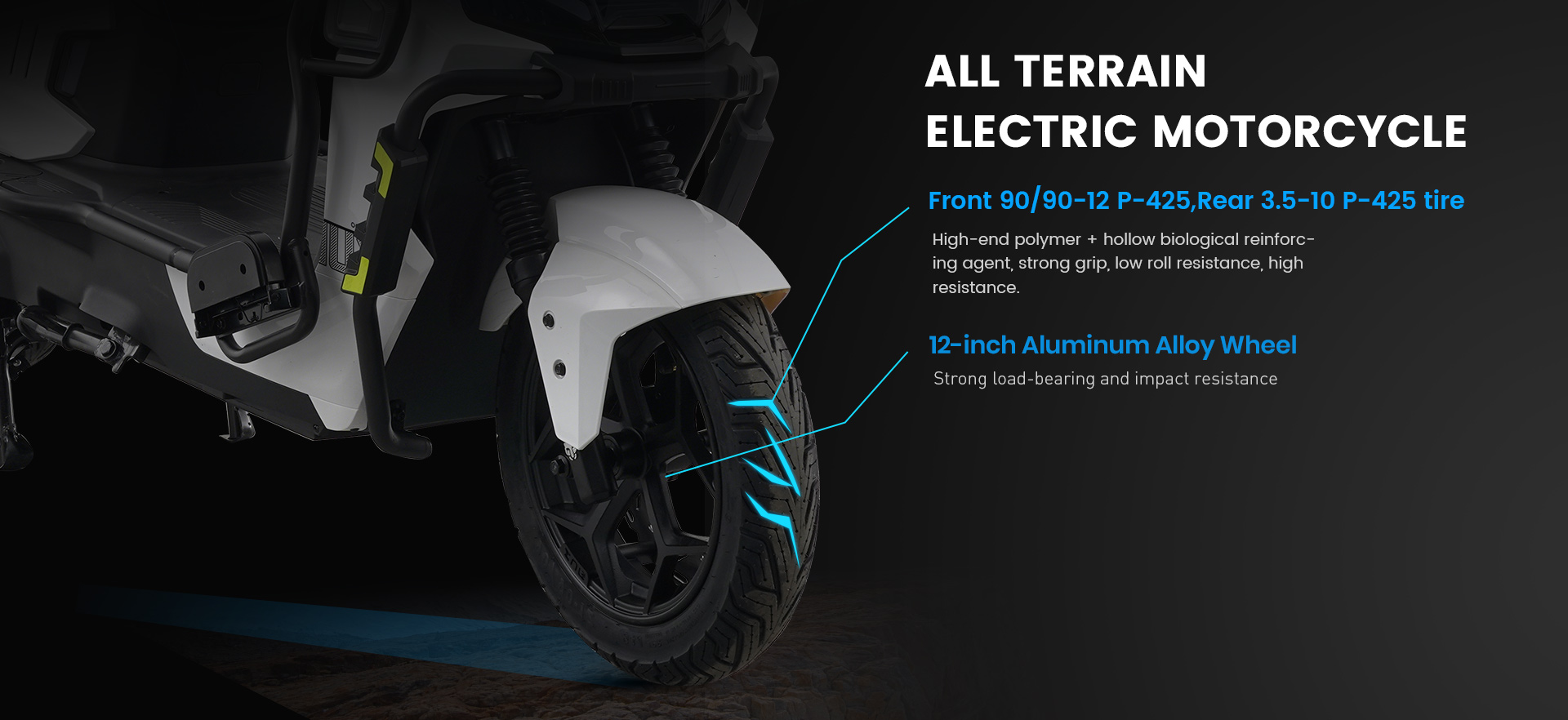

• Tire Specification:

  Front 90/90-12 P-425，Rear 3.5-10 P-425 tire

• Battery Type:

  Lead Acid

• Rated Capacity:

  20Ah

• Nominal Voltage:

  72V

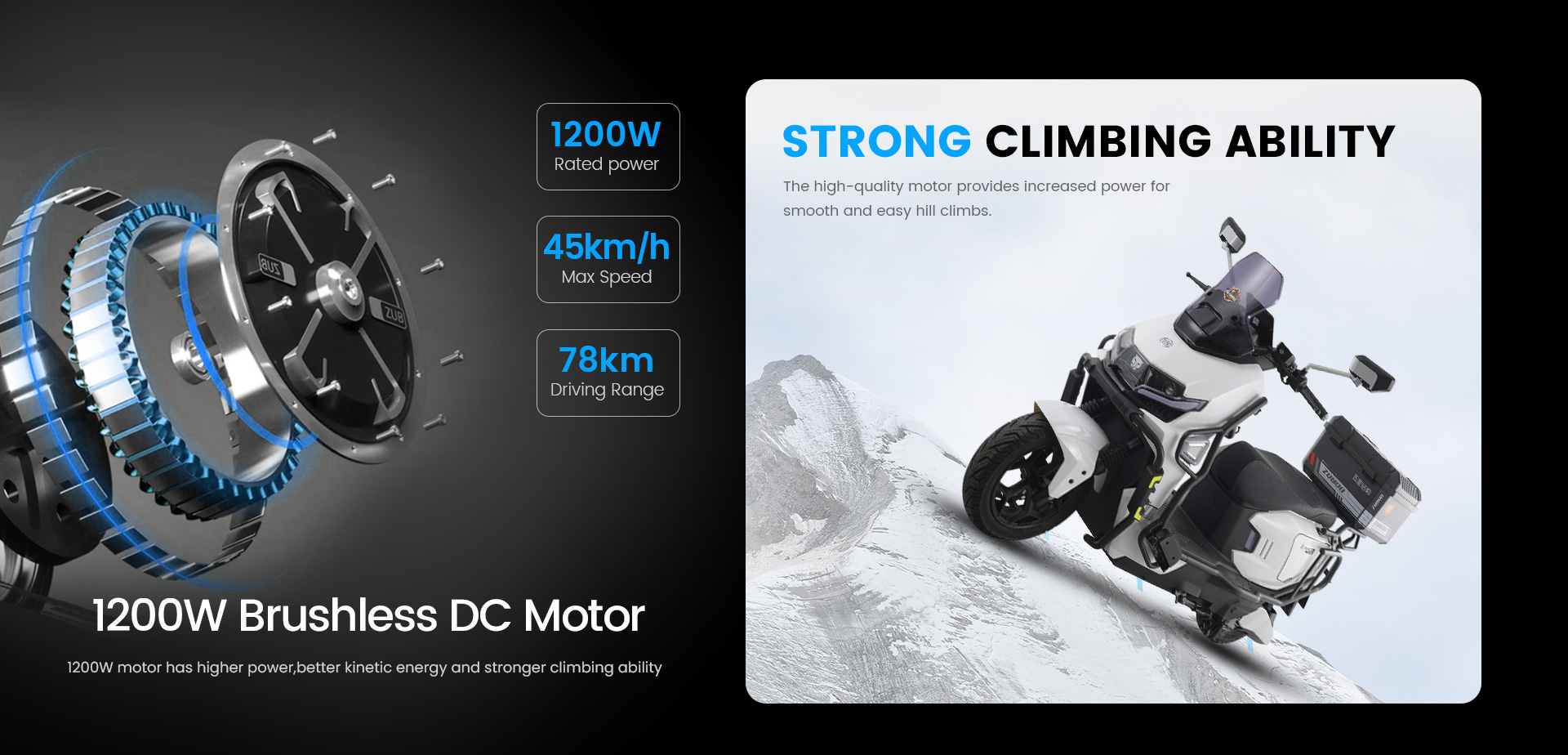

• Motor Type:

  10 inch Brushless DC

• Motor Rated Power:

  1200W

• Rotation Speed:

  550±10r/min

• Motor Rated Voltage:

  72V

• Output Max Torque:

  95N.M

• Controller Tubes:

  12 tubes

• Charging Time:

  5-6hrs

• Suspension System:

  Front+Rear Disc
