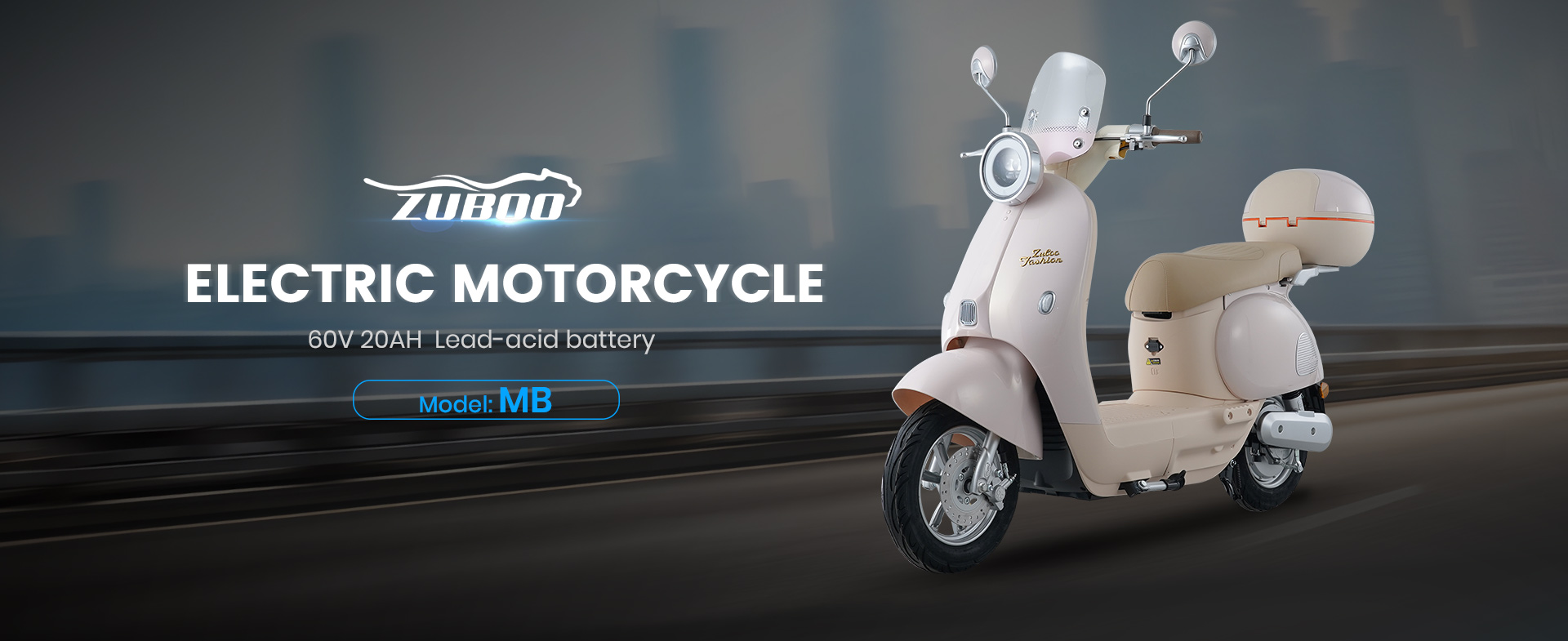

• Model No.:

  MB

• Overall Dimensions:

  1730×720×1020mm

• Packaging Size:

  1700×460×870mm

• Wheelbase:

  1250mm

• Maximum Speed:

  45km/h

• Range:

  60km

• Braking Length:

  8m

• Climbing Capacity:

  8°

• Minimum Ground Clearance:

  135mm

• Overall Weight:

  56kg

• Steering Angle:

  left 43°,right 44°

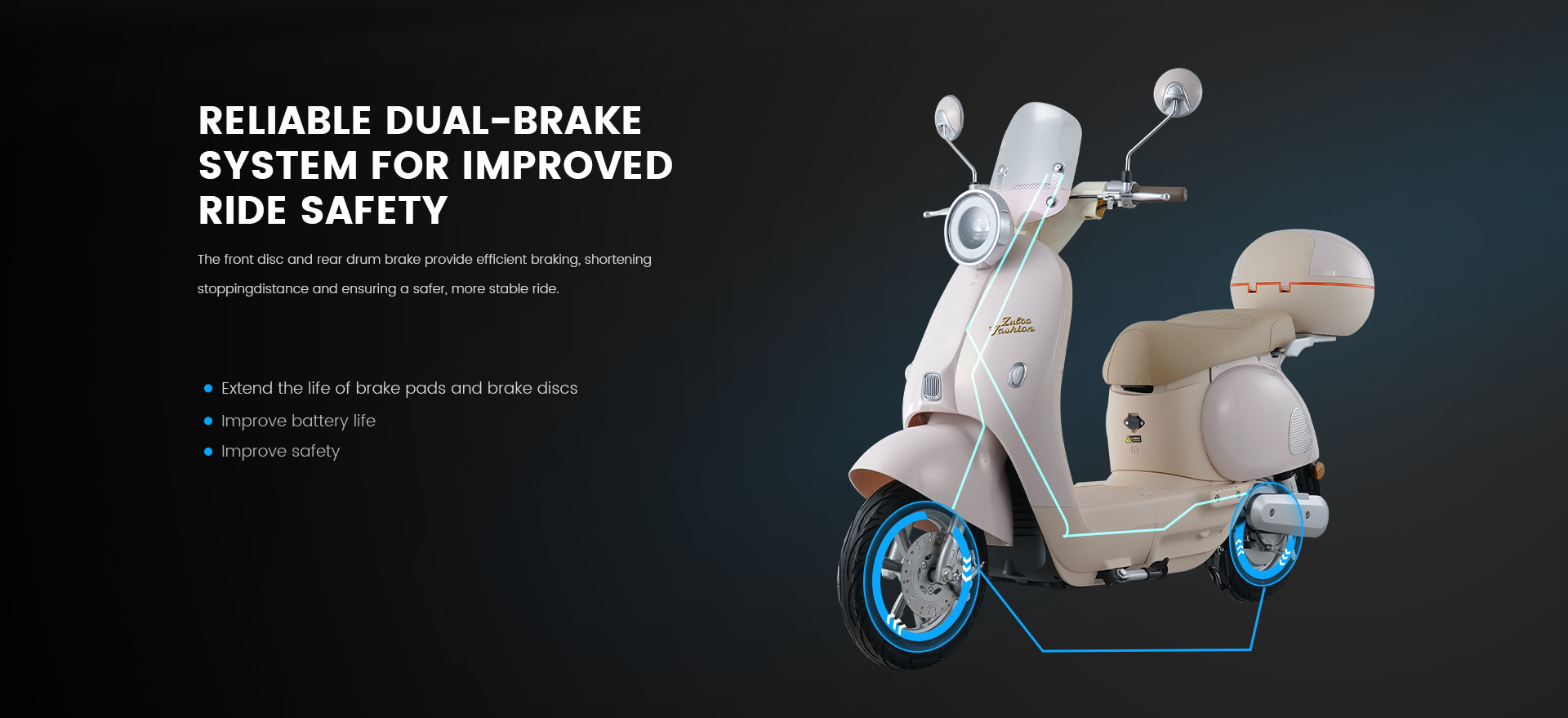

• Braking Method:

  Hand

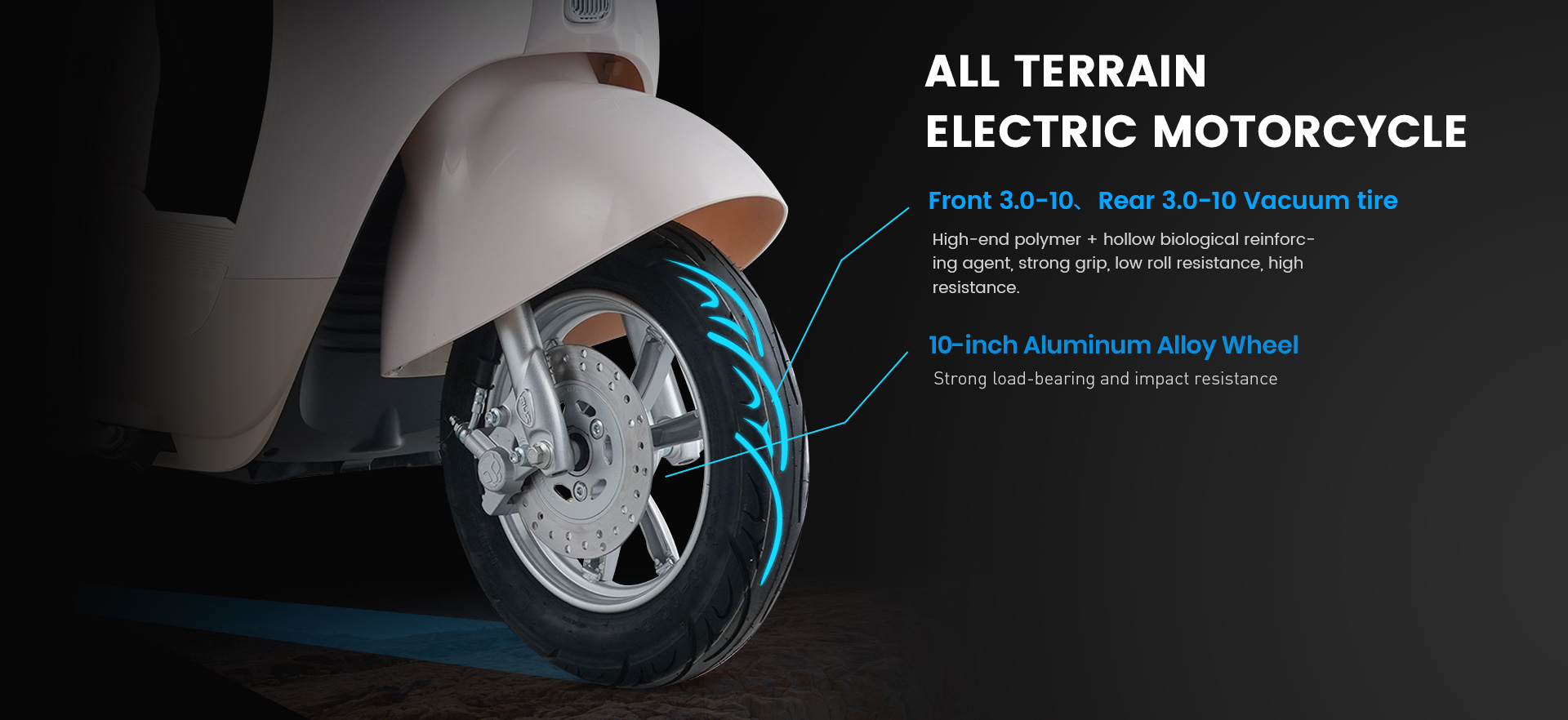

• Tire Specification:

  Front 3.0-10、Rear 3.0-10 Vacuum tire

• Battery Type:

  Lead Acid

• Rated Capacity:

  20Ah

• Nominal Voltage:

  60V

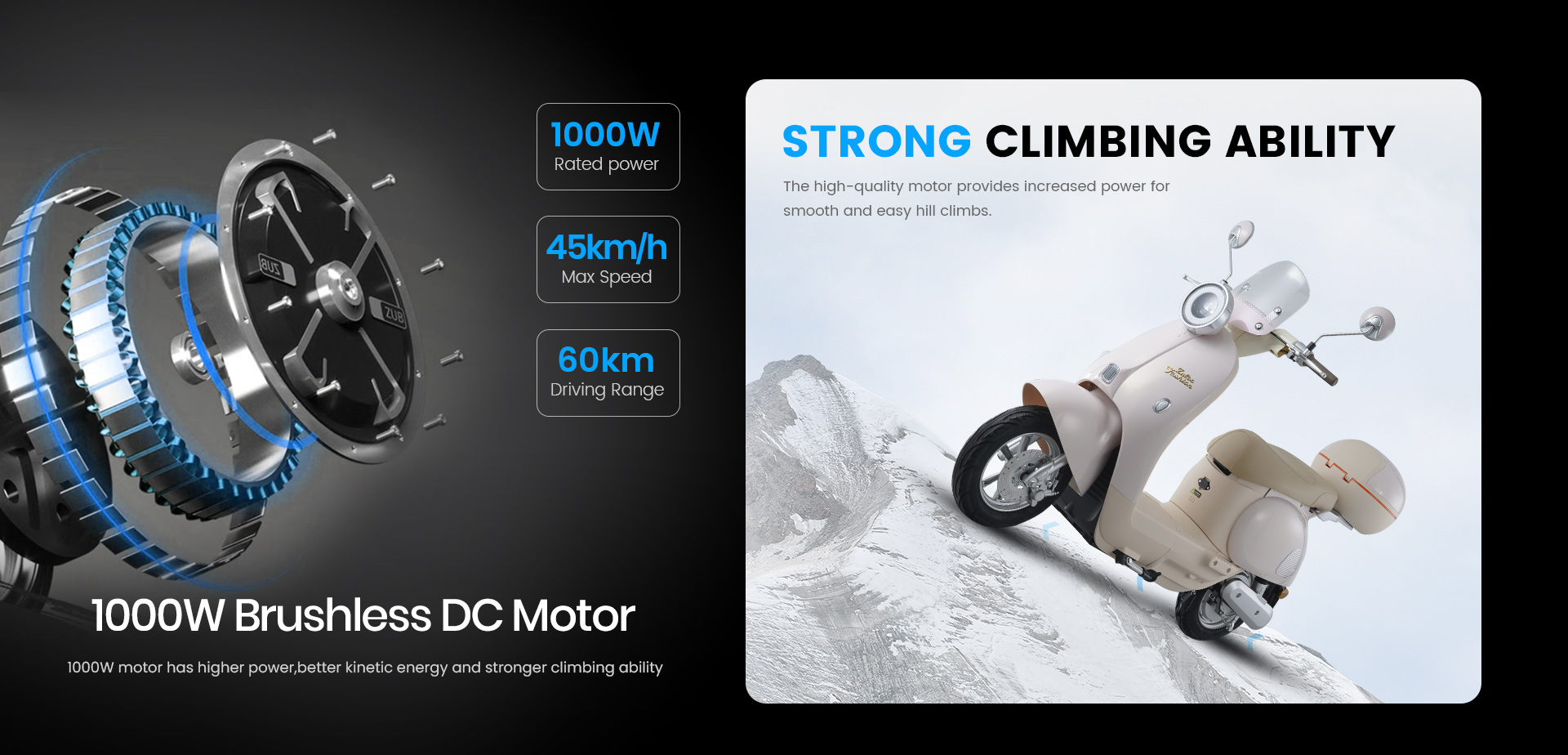

• Motor Type:

  10 inch Brushless DC

• Motor Rated Power:

  1000W

• Rotation Speed:

  550r/min

• Motor Rated Voltage:

  60V

• Output Max Torque:

  80N.M

• Controller Tubes:

  12 tubes

• Charging Time:

  5-6hrs

• Suspension System:

  Front Disc and rear drum brake
