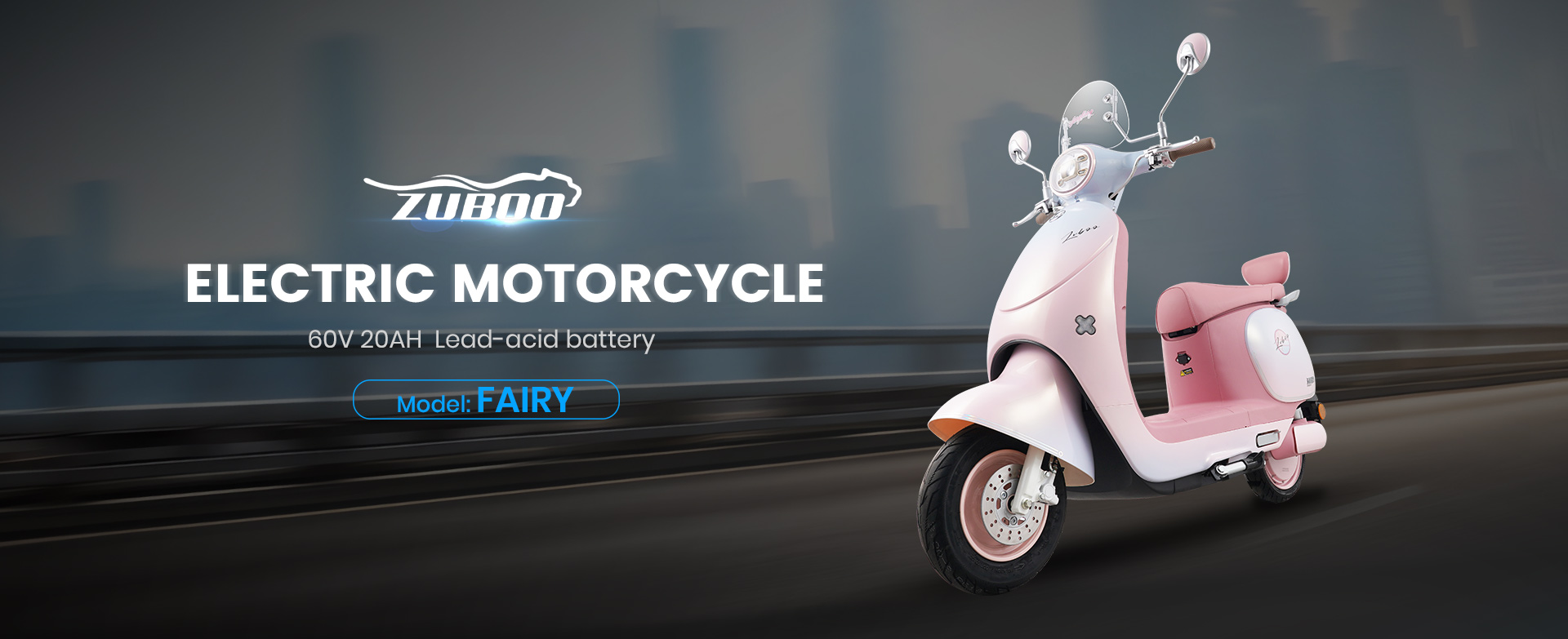

• Model No.:

  Fairy

• Overall Dimensions:

  1600×750×1025mm

• Packaging Size:

  1800×570×850mm

• Wheelbase:

  1150mm

• Maximum Speed:

  47km/h

• Range:

  ≥60km

• Braking Length:

  6.5m

• Climbing Capacity:

  8-15°

• Minimum Ground Clearance:

  120mm

• Overall Weight:

  93kg

• Steering Angle:

  left 43°,right 43°

• Braking Method:

  Hand

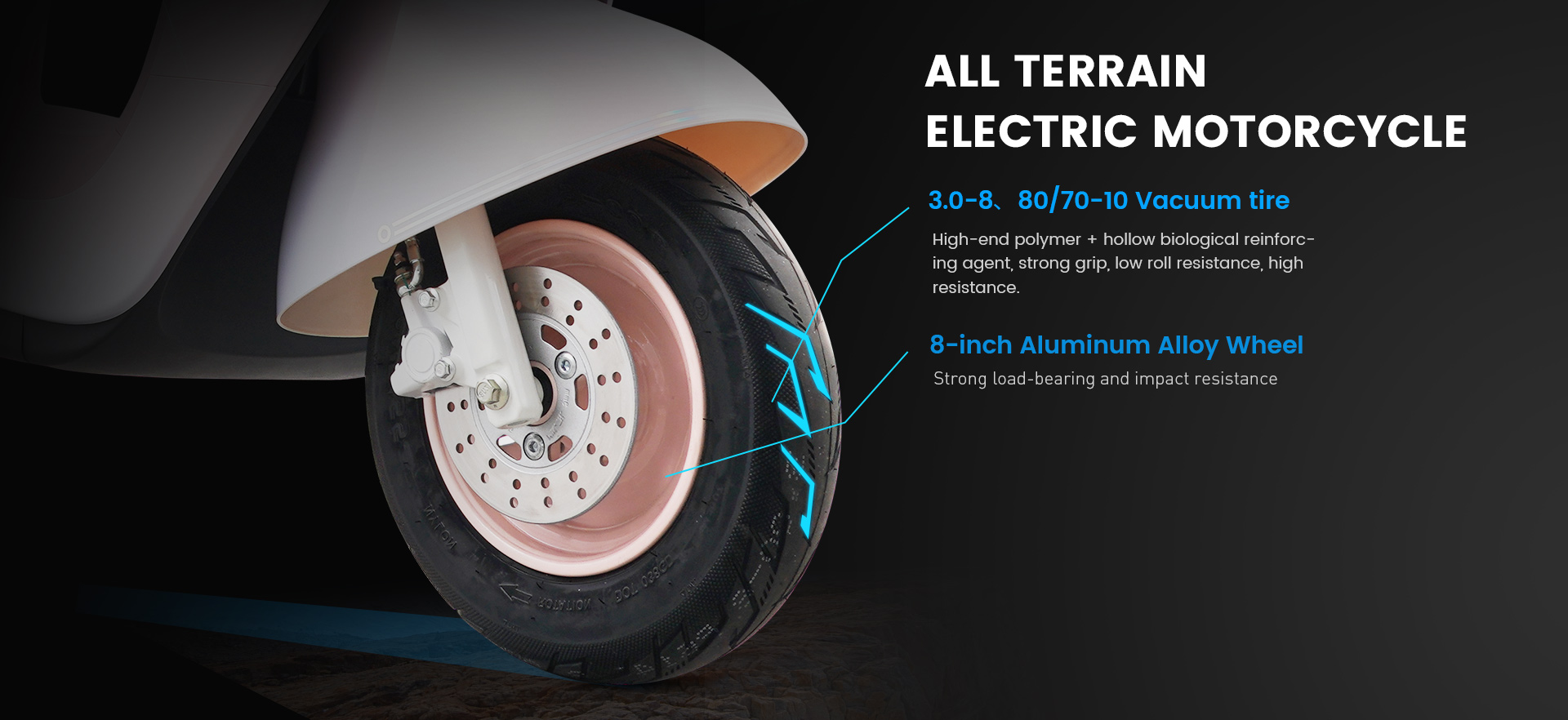

• Tire Specification:

  3.0-8、80/70-10 Vacuum tire

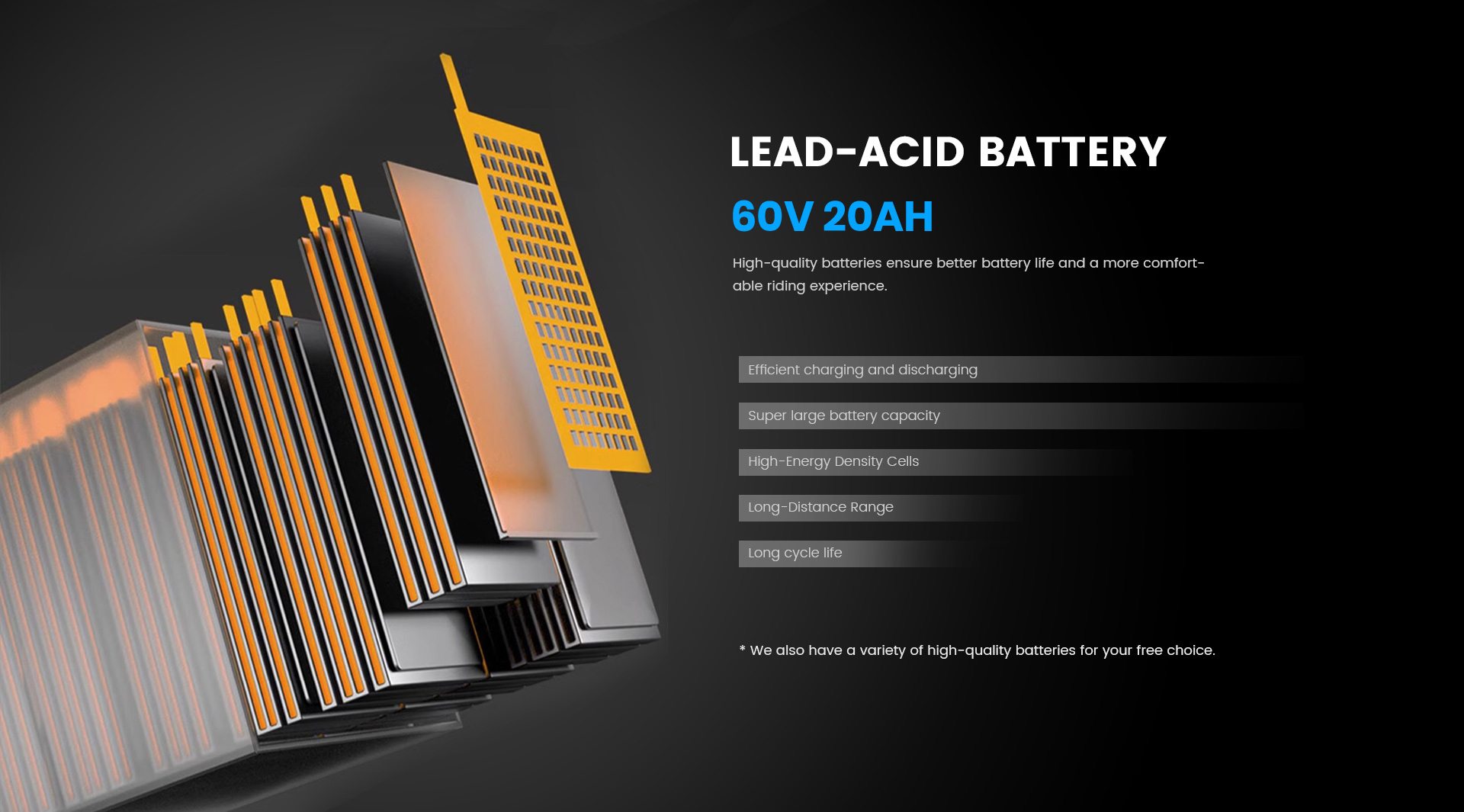

• Battery Type:

  Lead Acid

• Rated Capacity:

  20Ah

• Nominal Voltage:

  60V

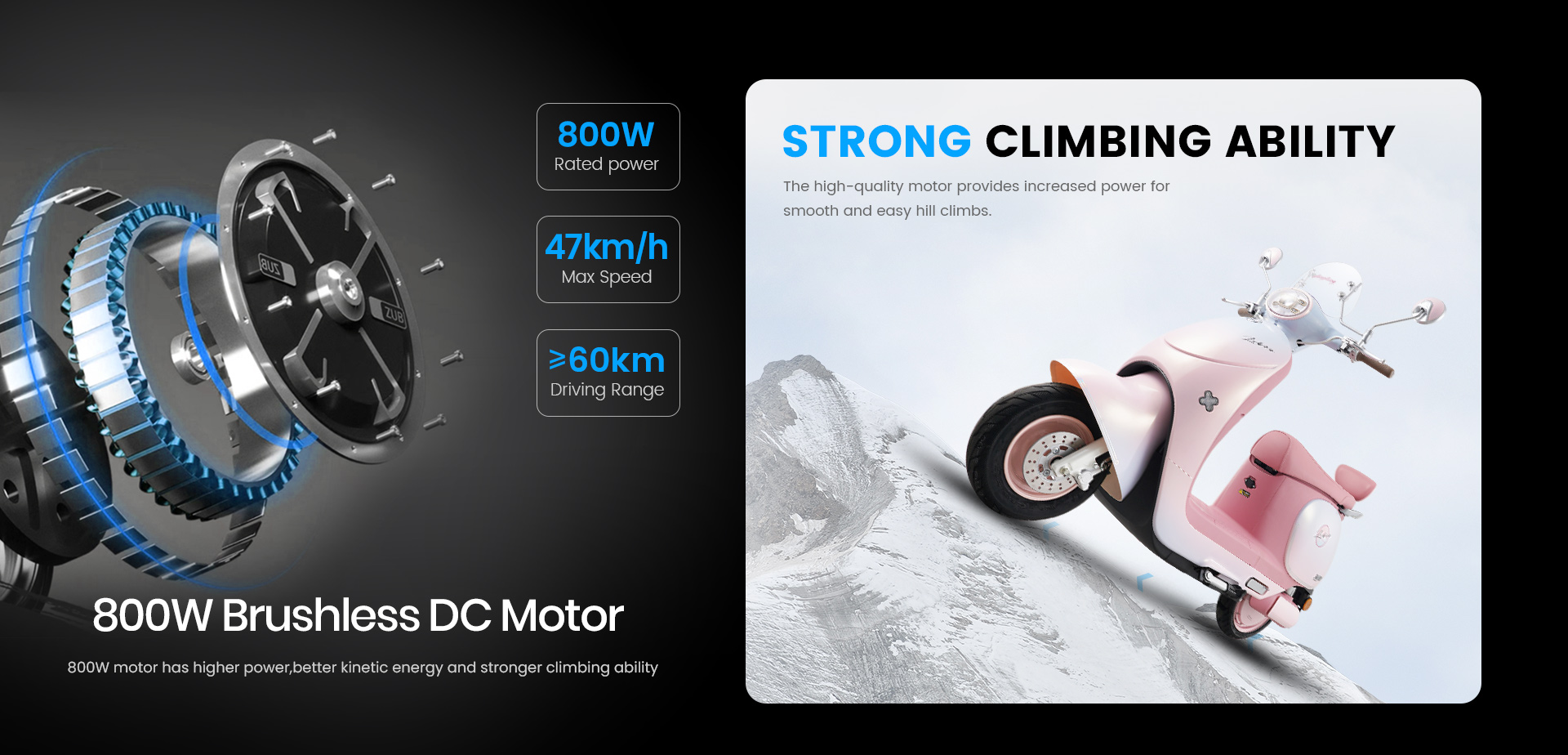

• Motor Type:

  10 inch Brushless DC

• Motor Rated Power:

  800W

• Rotation Speed:

  550r/min

• Motor Rated Voltage:

  60V

• Output Max Torque:

  80N.M

• Controller Tubes:

  12 tubes

• Charging Time:

  5-6hrs

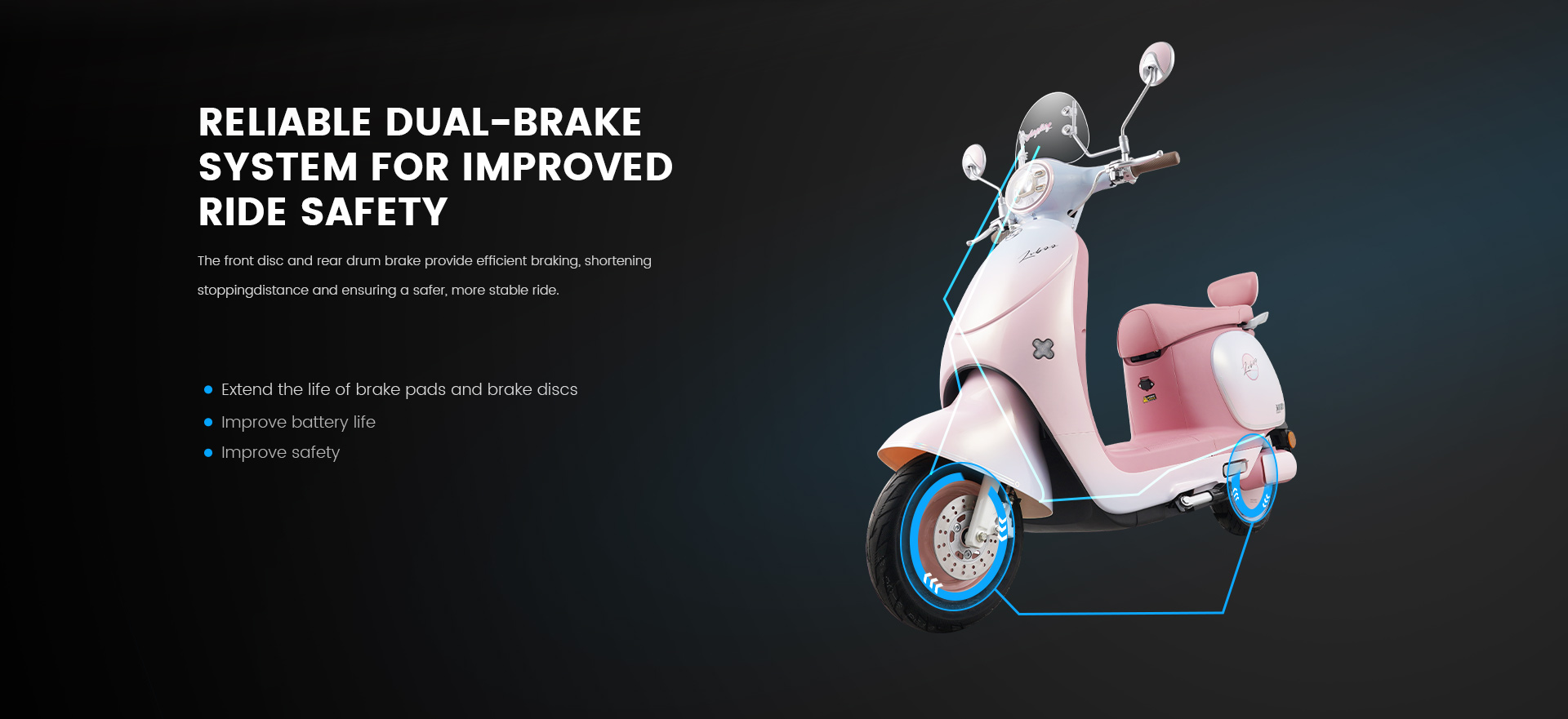

• Suspension System:

  Front Disc and rear drum brake
