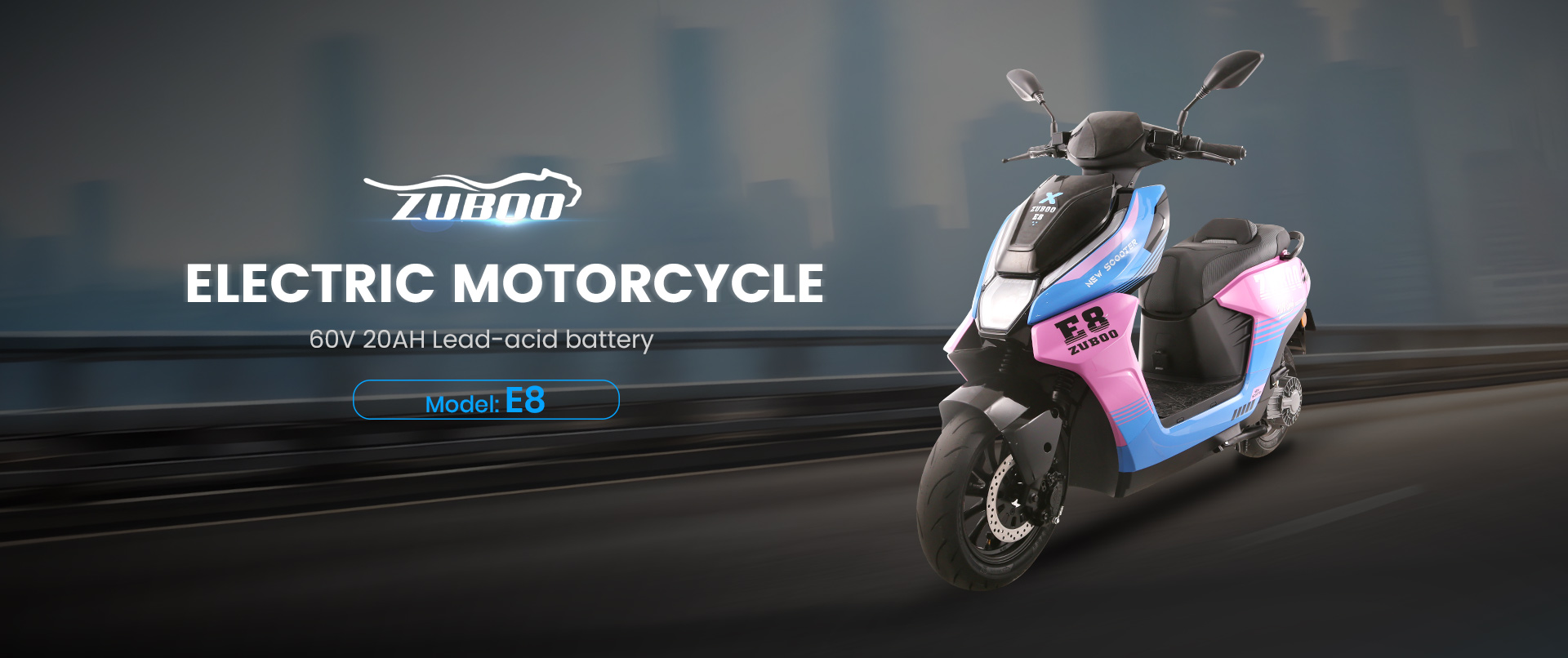

• Model No.:

  E8

• Overall Dimensions:

  1945×765×1165mm

• Packaging Size:

  1750*570*860mm

• Wheelbase:

  1360mm

• Maximum Speed:

  75km/h

• Range:

  ≥50km

• Braking Length:

  6.5m

• Climbing Capacity:

  8-15°

• Minimum Ground Clearance:

  120mm

• Overall Weight:

  134kg

• Steering Angle:

  left 43°,right 44°

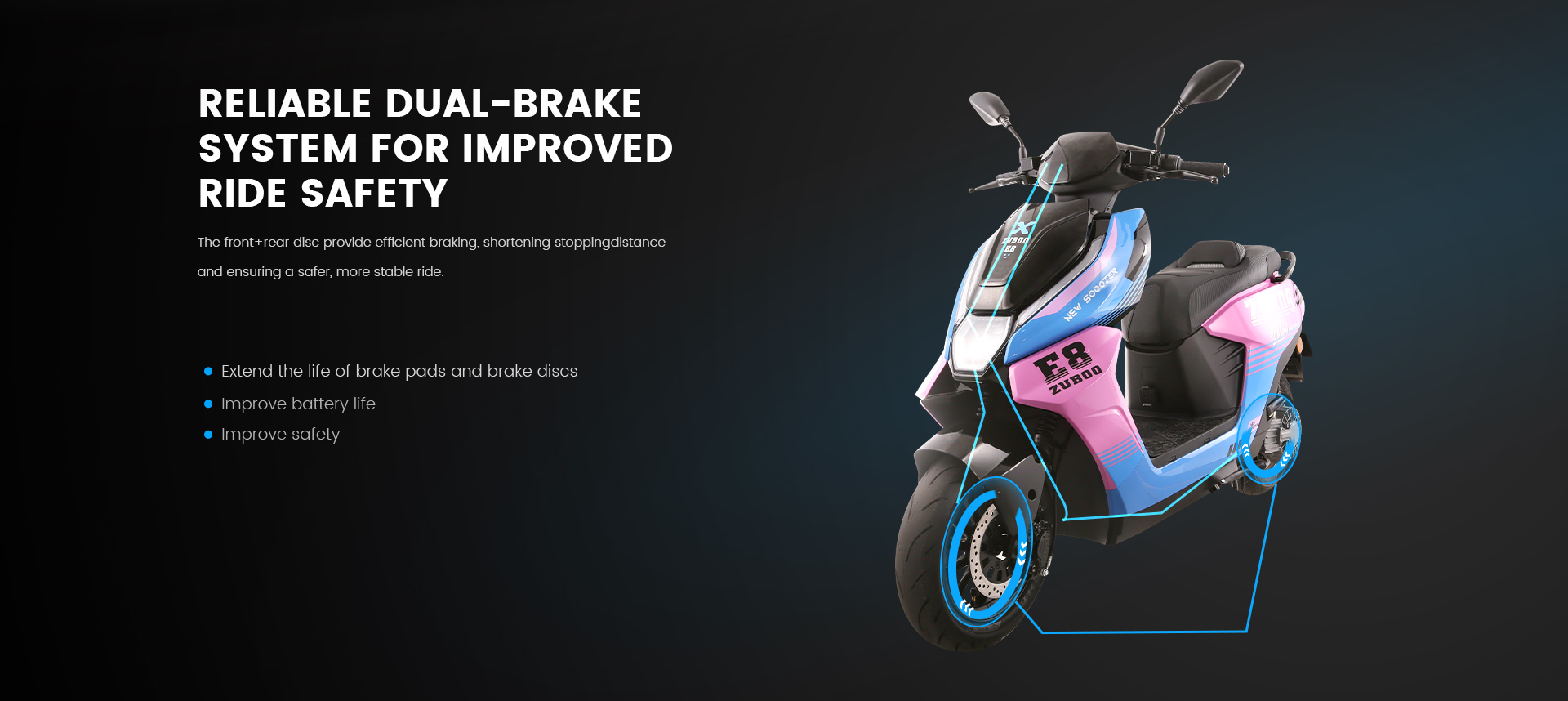

• Braking Method:

  Hand

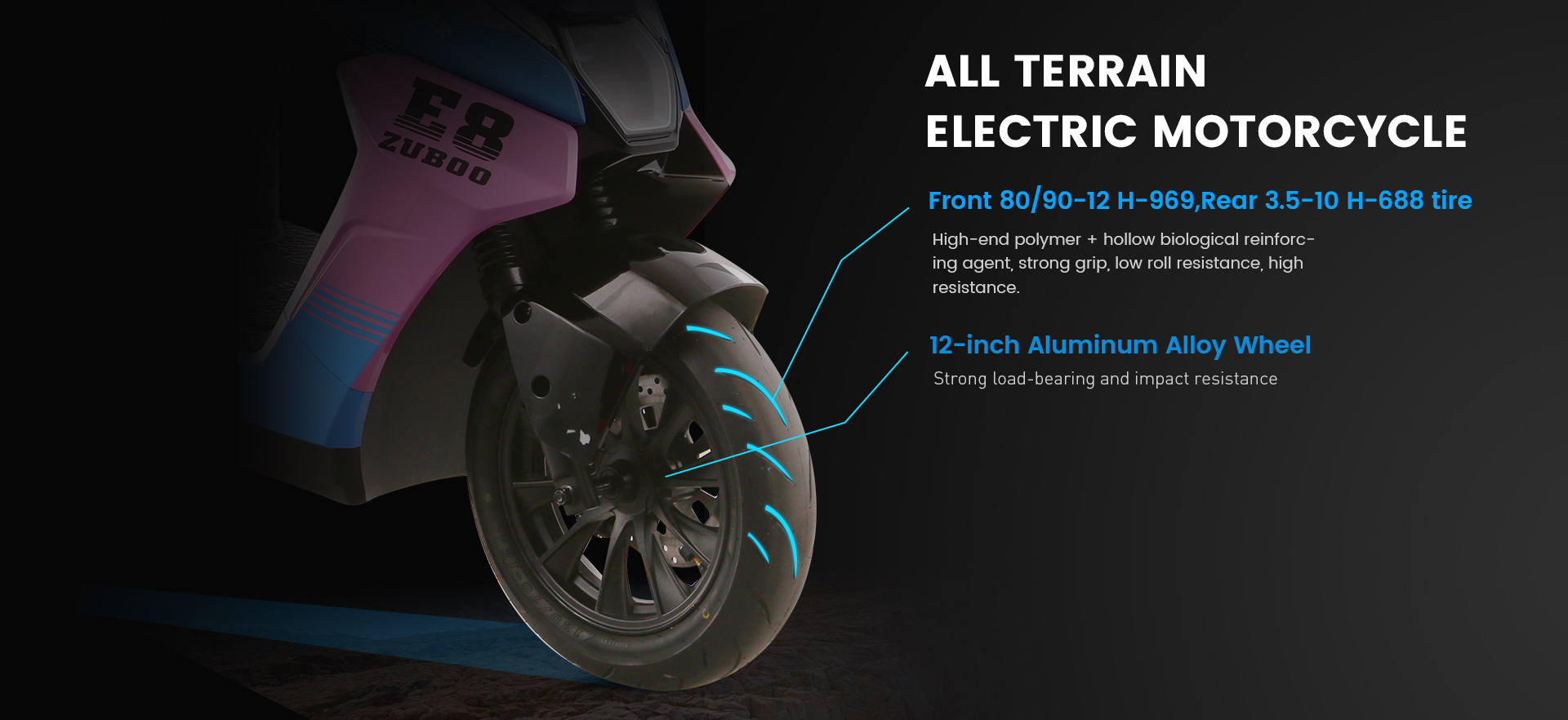

• Tire Specification:

  Front 80/90-12 H-969,Rear 3.5-10 H-688 tire

• Battery Type:

  Lead Acid

• Rated Capacity:

  20Ah

• Nominal Voltage:

  60V

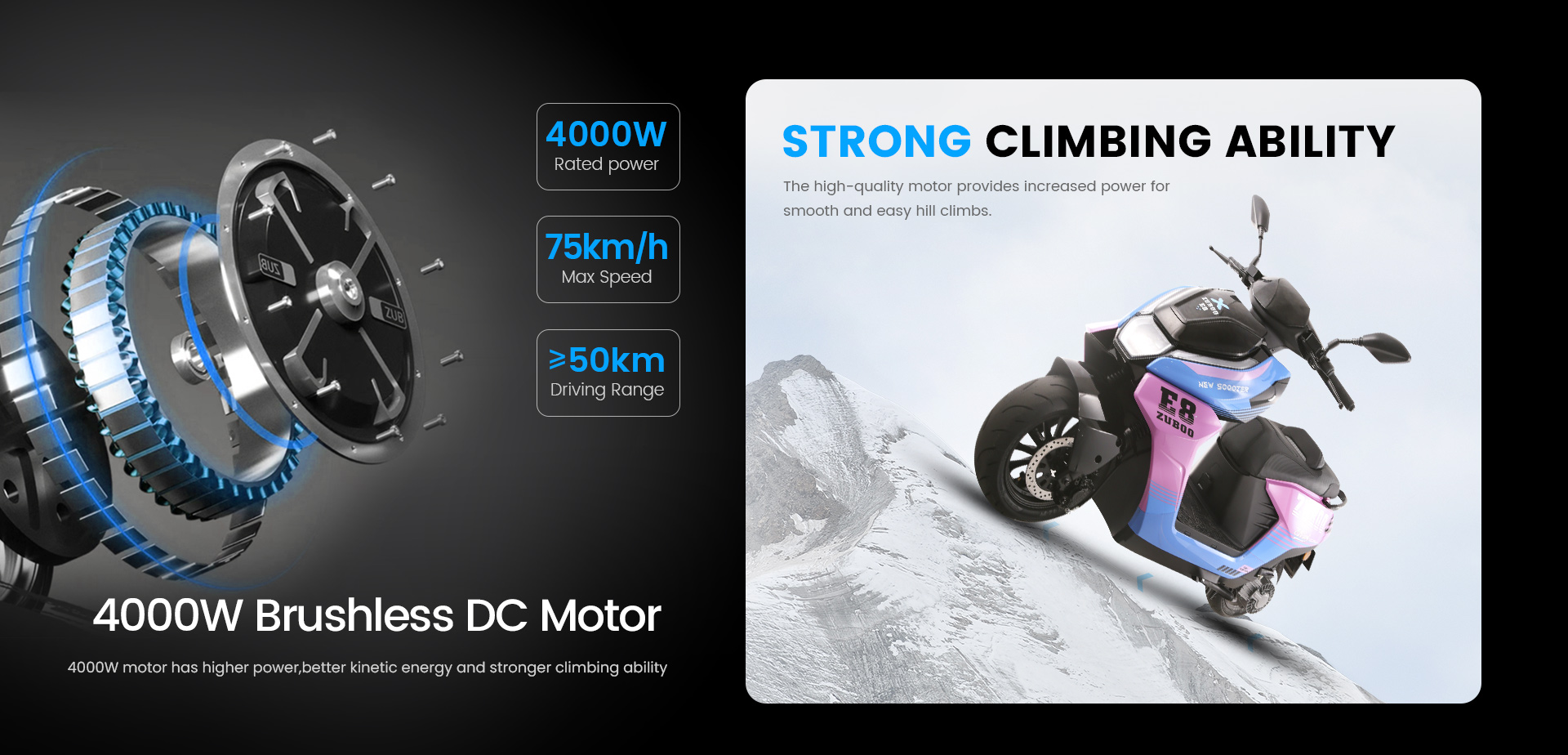

• Motor Type:

  10 inch Brushless DC

• Motor Rated Power:

  4000W

• Rotation Speed:

  1000r/min

• Motor Rated Voltage:

  60V

• Output Max Torque:

  141N.M

• Controller Tubes:

  12 tubes

• Charging Time:

  4-5hrs

• Suspension System:

  Front+Rear Disc
